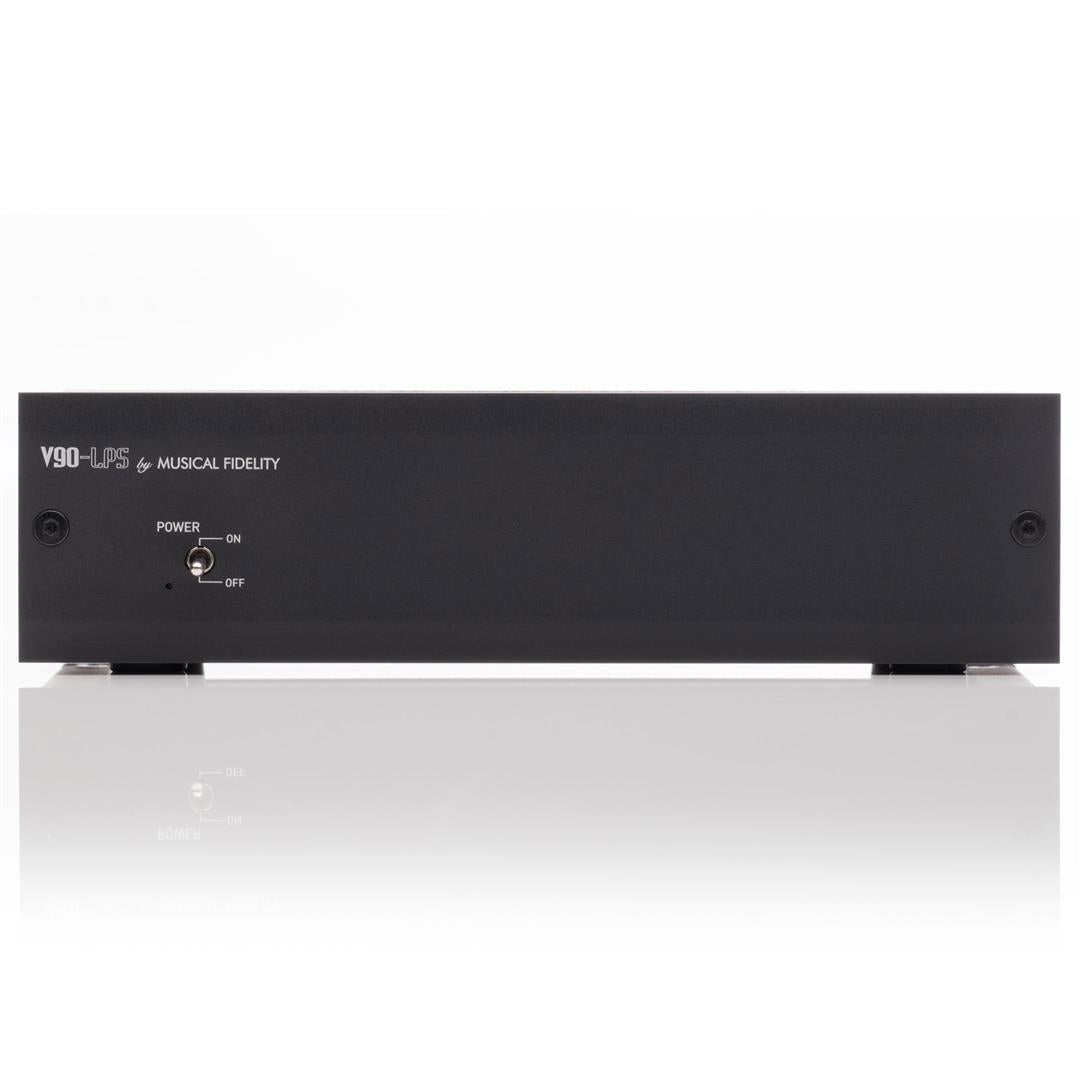

Musical Fidelity V90-LPS Phono Stage Amplifier

    Description

    • Superb technical performance.
    • Switchable MM / MC input
    • Beautiful, considered build quality

    V90 Series

    The V90-LPS is a modestly priced, very high performance MM/MC phono stage with superb technical performance.

    There are five critical areas where a phono stage must achieve excellence:

    1. RIAA correction
    2. Correction above 20 kHz
    3. Low distortion
    4. Low noise
    5. Good overload margin

    The V90-LPS has extremely accurate RIAA correction and that extends up to 80 kHz and beyond. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot. The distortion is very low. Noise ratio is extremely low and all but inaudible. Overload margin is easily adequate for any current cartridge.

    All in all, the V90-LPS accomplishes everything necessary for a phono stage.

    Features

    • Switchable MM / MC input
    • Extremely accurate RIAA extending out to at least 60kHz
    • Very low noise
    • Very low distortion
    • Excellent overload margin
    • Excellent channel separation
    • Beautiful, considered build quality

    Specifications

    Input Impedance: MM: 47kΩ
    MC: 100Ω
    Input Sensitivity: MM: 3.0V
    MC: 400μV
    Total Harmonic Distortion: 0.001% (MM/MC) - @ 1kHz, 300mV out
    Frequency Response: +0, -0.1dB, 20Hz to 20kHz
    Signal / Noise Ratio (A weighted): MM: >80dB
    MC: >70dB
    Inout Overload Margin: MM: 15dB
    MC: 22dB
    RIAA Response: +/-0.25dB

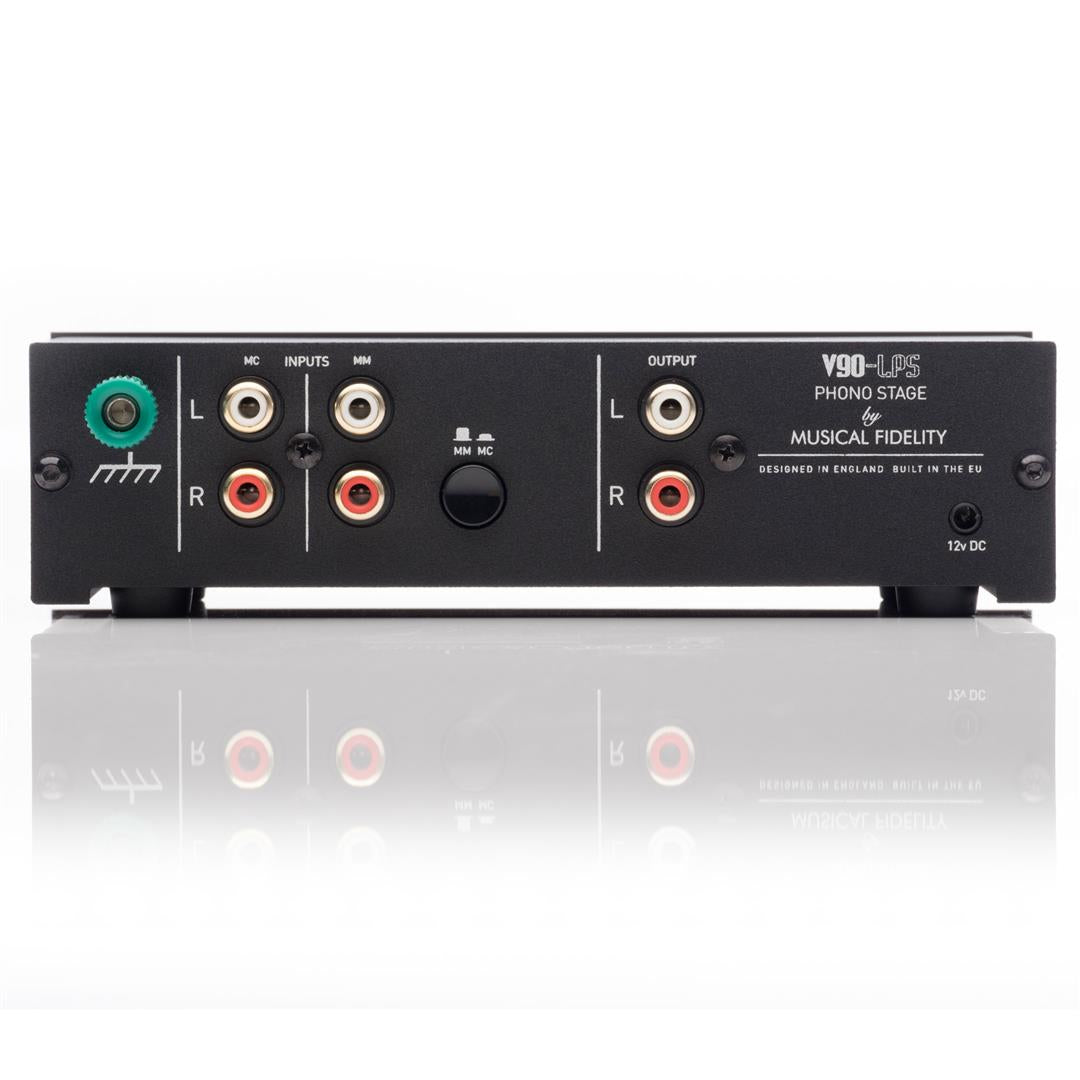

    Inputs: MM: 1 pair RCA sockets
    MC: 1 pair RCA sockets
    Outputs: 1 pair RCA sockets
    Dimensions: Width: 170mm
    Height: 47mm
    Depth: 385mm (including terminals)
    Weight: 600g (unboxed)
    Accessories: 1x 12v 500mA DC power supply

    Read more

    Musical Fidelity V90-LPS Phono Stage Amplifier

      Product form

      £159.00 Incl. VAT

      • Dispatch today? Order within: Dec 06, 2023 14:00:00 +0000

        Description

        • Superb technical performance.
        • Switchable MM / MC input
        • Beautiful, considered build quality

        V90 Series

        The V90-LPS is a modestly priced, very high performance MM/MC phono stage with superb technical performance.

        There are five critical areas where a phono stage must achieve excellence:

        1. RIAA correction
        2. Correction above 20 kHz
        3. Low distortion
        4. Low noise
        5. Good overload margin

        The V90-LPS has extremely accurate RIAA correction and that extends up to 80 kHz and beyond. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot. The distortion is very low. Noise ratio is extremely low and all but inaudible. Overload margin is easily adequate for any current cartridge.

        All in all, the V90-LPS accomplishes everything necessary for a phono stage.

        Features

        • Switchable MM / MC input
        • Extremely accurate RIAA extending out to at least 60kHz
        • Very low noise
        • Very low distortion
        • Excellent overload margin
        • Excellent channel separation
        • Beautiful, considered build quality

        Specifications

        Input Impedance: MM: 47kΩ
        MC: 100Ω
        Input Sensitivity: MM: 3.0V
        MC: 400μV
        Total Harmonic Distortion: 0.001% (MM/MC) - @ 1kHz, 300mV out
        Frequency Response: +0, -0.1dB, 20Hz to 20kHz
        Signal / Noise Ratio (A weighted): MM: >80dB
        MC: >70dB
        Inout Overload Margin: MM: 15dB
        MC: 22dB
        RIAA Response: +/-0.25dB
        Inputs: MM: 1 pair RCA sockets
        MC: 1 pair RCA sockets
        Outputs: 1 pair RCA sockets
        Dimensions: Width: 170mm
        Height: 47mm
        Depth: 385mm (including terminals)
        Weight: 600g (unboxed)
        Accessories: 1x 12v 500mA DC power supply

        Read more
