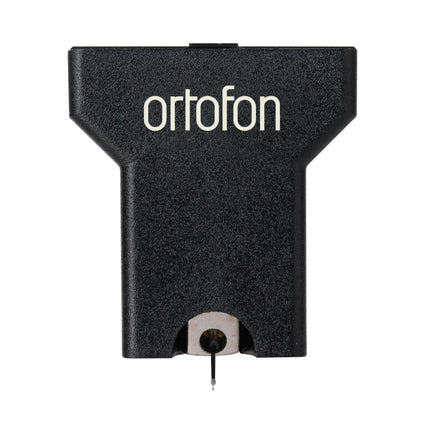

Ortofon Hi-Fi Quintet Black S Moving Coil Cartridge

    Description

    • Light weight and durable cartridge body
    • Neodymium magnets are implemented to achieve an optimal output
    • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage

    Quintet Series

    Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon have introduced about 100 different moving coil models, with their latest being the Quintet Series.

    Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that have made Ortofon the global leader in the manufacturing and supplying of phono cartridges.

    The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction through out the spectrum, including even the most high frequency groove details.

    The Quintet Black S is unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

    The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without colouration.

    Features

    • Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
    • Neodymium magnets are implemented to achieve an optimal output
    • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage
    • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
    • Supplied with 2 screws (M2.5 x 5)
    • Nude Shibata stylus profile

    Specifications

    Output Voltage (at 1kHz, 5cm/sec): 0.3mV
    Channel Balance at 1kHz: <1.0dB
    Channel Separation at 1kHz: >23dB
    Channel Separation at 15kHz: >15dB
    Frequency Range (at -3dB): 20 Hz - 25 kHz
    Frequency Response 20Hz - 20kHz: ± 1.5dB
    Tracking Ability at 315Hz: 80μm
    Compliance, Dynamic, Lateral: 15μm / mN
    Stylus Type: Nude Shibata
    Stylus Tip Radius r / R: 6 / 50μm
    Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
    Recommended Tracking Force: 2.3g (23mN)
    Tracking Angle: 20º
    Internal Impedance / DC Resistance:
    Recommended Load Impedance: >20Ω
    Cartridge Body Material: ABS/Alu.
    Coil Wire Material:   Aucurum
    Cartridge Colour: Black
    Cartridge Weight: 9g

    Ortofon Hi-Fi Quintet Black S Moving Coil Cartridge

      Product form

      £874.99 Incl. VAT

      1 in stock Delivered less than 36 hours

      • Dispatch today? Order within: Nov 30, 2023 14:00:00 +0000

        Description

        • Light weight and durable cartridge body
        • Neodymium magnets are implemented to achieve an optimal output
        • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage

        Quintet Series

        Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon have introduced about 100 different moving coil models, with their latest being the Quintet Series.

        Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that have made Ortofon the global leader in the manufacturing and supplying of phono cartridges.

        The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction through out the spectrum, including even the most high frequency groove details.

        The Quintet Black S is unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

        The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without colouration.

        Features

        • Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
        • Neodymium magnets are implemented to achieve an optimal output
        • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage
        • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
        • Supplied with 2 screws (M2.5 x 5)
        • Nude Shibata stylus profile

        Specifications

        Output Voltage (at 1kHz, 5cm/sec): 0.3mV
        Channel Balance at 1kHz: <1.0dB
        Channel Separation at 1kHz: >23dB
        Channel Separation at 15kHz: >15dB
        Frequency Range (at -3dB): 20 Hz - 25 kHz
        Frequency Response 20Hz - 20kHz: ± 1.5dB
        Tracking Ability at 315Hz: 80μm
        Compliance, Dynamic, Lateral: 15μm / mN
        Stylus Type: Nude Shibata
        Stylus Tip Radius r / R: 6 / 50μm
        Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
        Recommended Tracking Force: 2.3g (23mN)
        Tracking Angle: 20º
        Internal Impedance / DC Resistance:
        Recommended Load Impedance: >20Ω
        Cartridge Body Material: ABS/Alu.
        Coil Wire Material:   Aucurum
        Cartridge Colour: Black
        Cartridge Weight: 9g
