Description
Product Overview

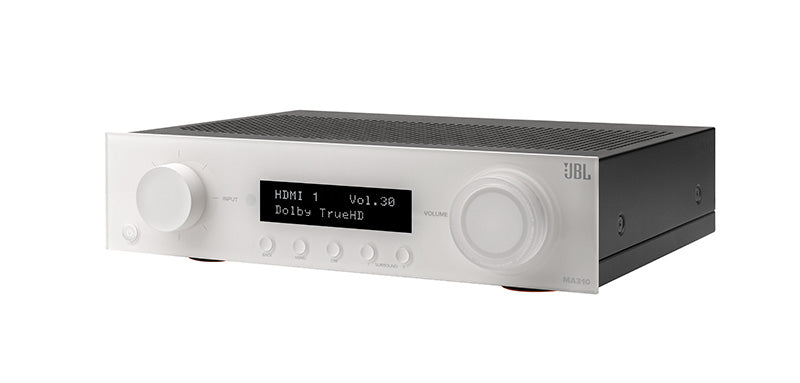

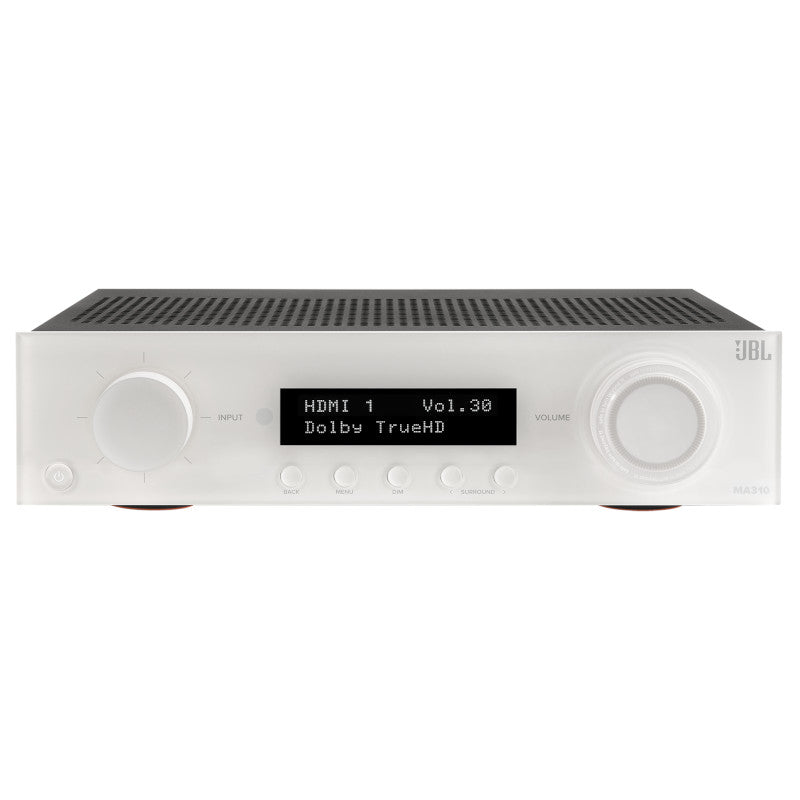

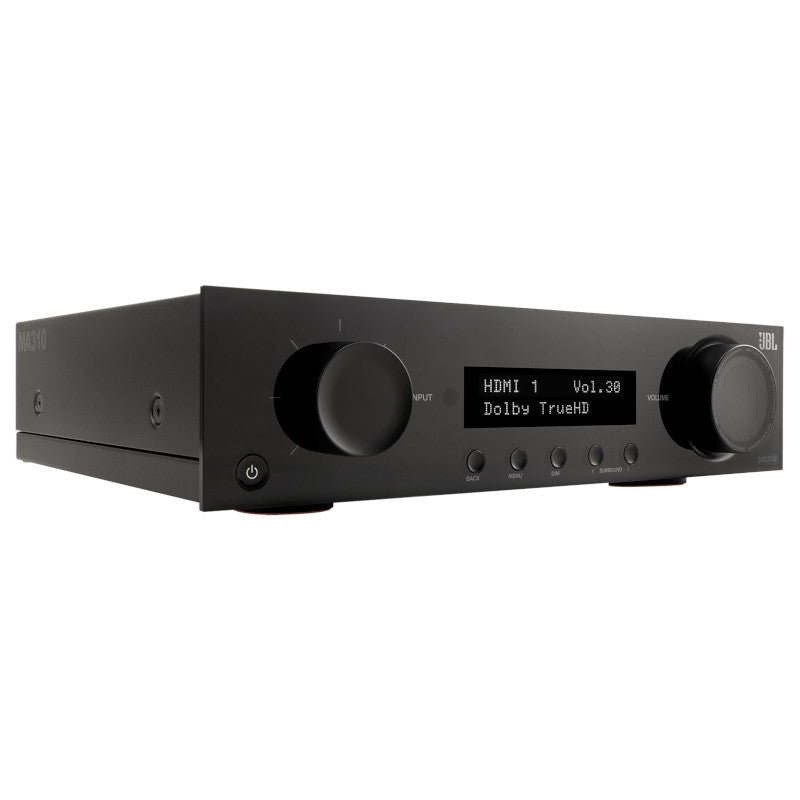

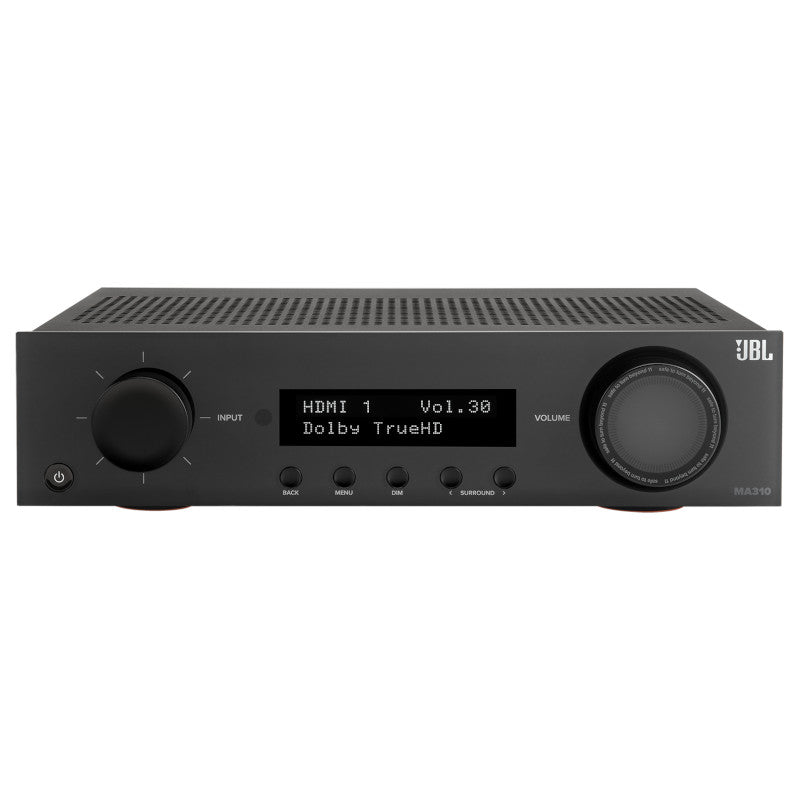

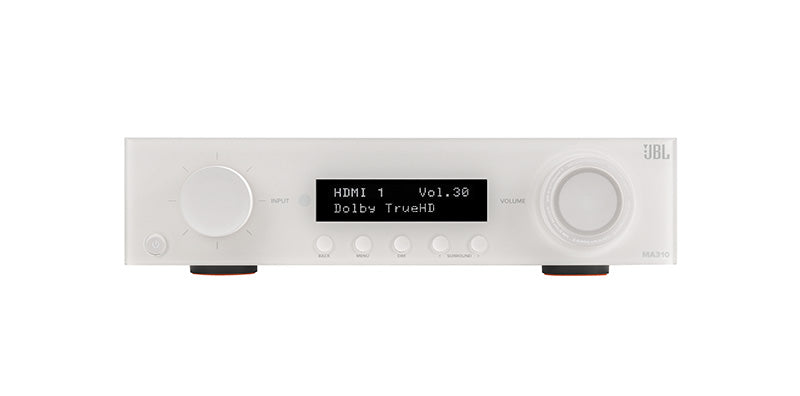

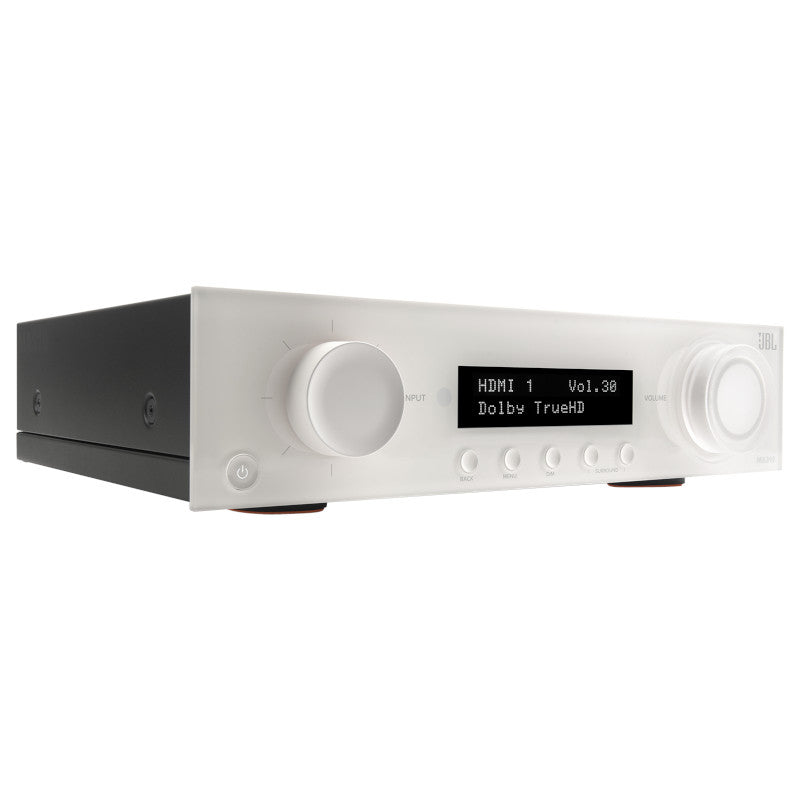

The JBL MA310 is an AV Receiver that offers exceptional performance with 4K HDMI capabilities, providing a top-notch home theater experience.
Seamlessly integrate your smart TV or
projector with 4 HDMI inputs and 1 output, plus ARC.
With native 5-channel decoding of Dolby and DTS
formats, the MA310 can deliver incredible cinema
experiences.
Crafted with a passion for both music and movies, the JBL MA310 5.2 Channel 4K AV Receiver brings an unparalleled level of high fidelity to your entertainment experience.
Additional music content can be accessed via
Bluetooth.

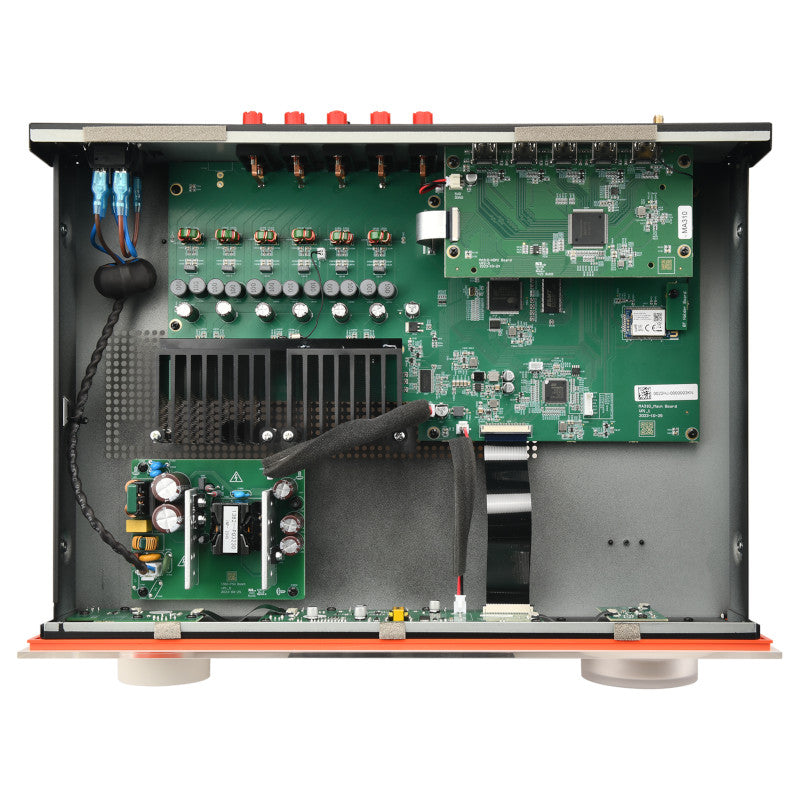

The MA310 features five channels of low
noise Class D amplification for real world power to all
channels.
Features
• 5.2-channel AV receiver that deliversextraordinary audio performance with 4Kvideo for a supreme home cinema experience• Seamless integration with smart TVs, gamingconsoles, streaming, cable boxes and morewith 4 HDMI inputs and 1 output, plus ARC• Native 5-channel decoding of Dolby and DTSformats• Designed with a passion for music andmovies, bringing both to life with true highfidelity• Stream music wirelessly via Bluetooth v5.1• On-screen display for easy system setup andoperation (via HDMI)• Five channels of low noise Class Damplification for real world power to allchannels• EZ Set EQ provides easy-to-use roomequalization for optimized sound quality
Specification
- 5.2-channel 4K AV Receiver
- Channels: 5.2
- Rated Power @ 8Ω (1kHz, 2 channels driven, 0.5% THD max): 60 W RMS
- Rated Power @ 4Ω (1kHz, 2 channels driven, 0.5% THD max): 100 W RMS
- HDMI Audio Return Channel

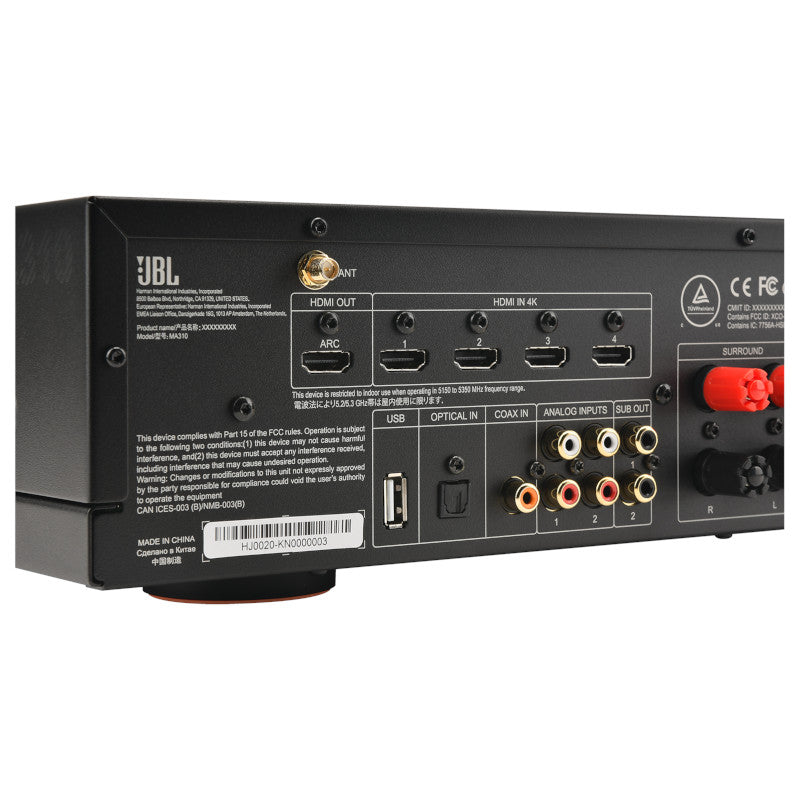

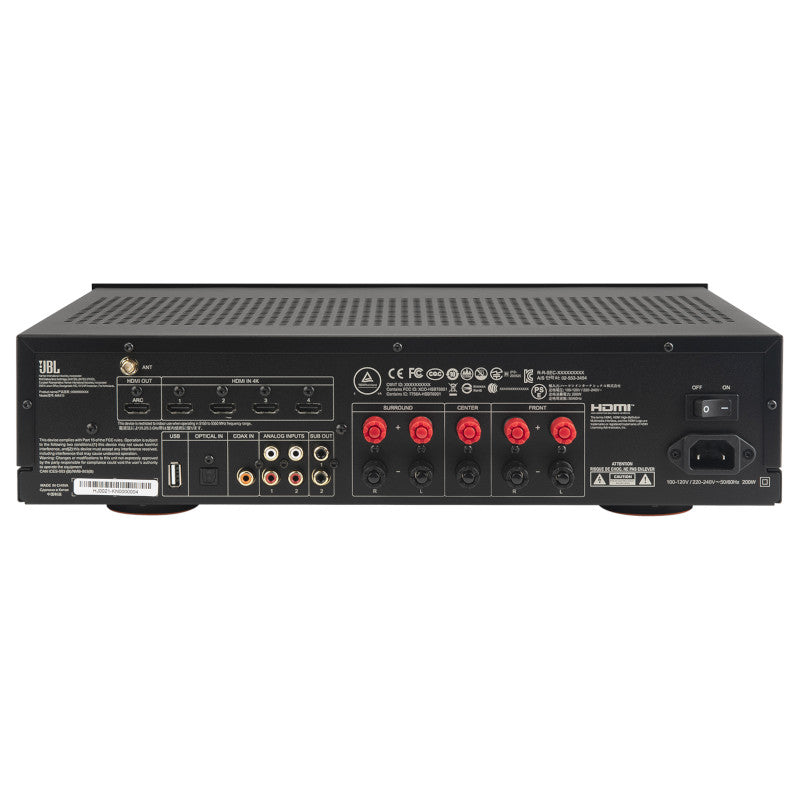

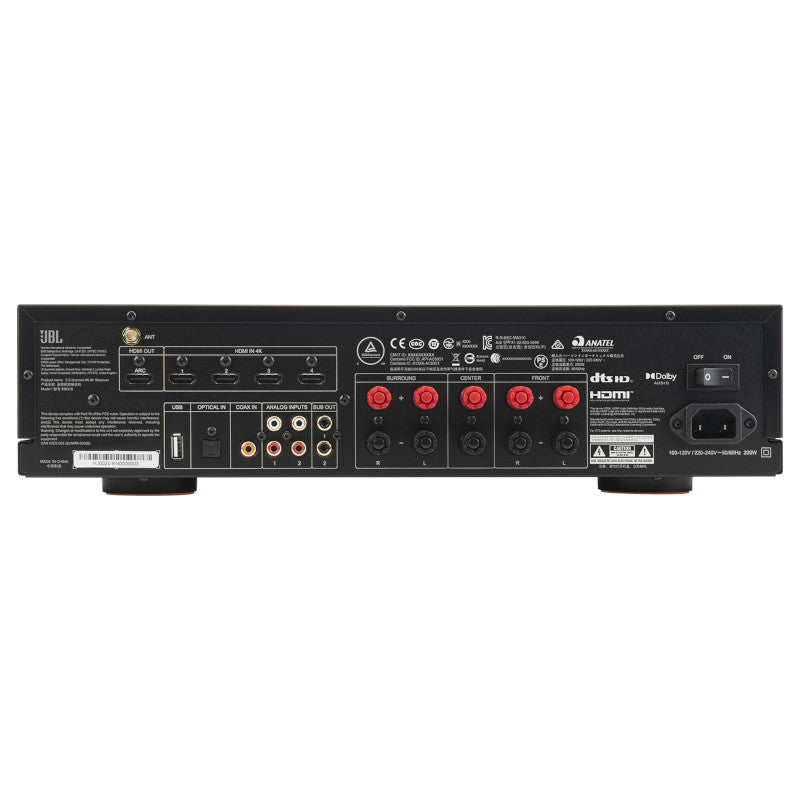

- 4K HDMI input connectors (HDMI 2.0, HDCP 2.2 up to 4K/60Hz Ultra HD): 4
- HDR 10 • Pure Direct
- EZ/Set EQ
- DA converter: 192kHz/24-bit
- HDMI Input/Output: 4 / 1
- Bluetooth receive: Yes (v5.1, Low Energy)
- Digital Audio Input: 1 Coax, 1 Optical
- Stereo analog input: 2 single-ended RCA
- Pre-Out (single ended RCA): Subwoofer 1, Subwoofer 2
- Mains voltage: 110 – 240V, 50–60Hz
- Max. power consumption: 200W
- Standby power consumption: <0.5W
- Dimensions incl. feet and speaker terminals (H x W x D): 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm)
- Weight:11.3lb (5.1kg)

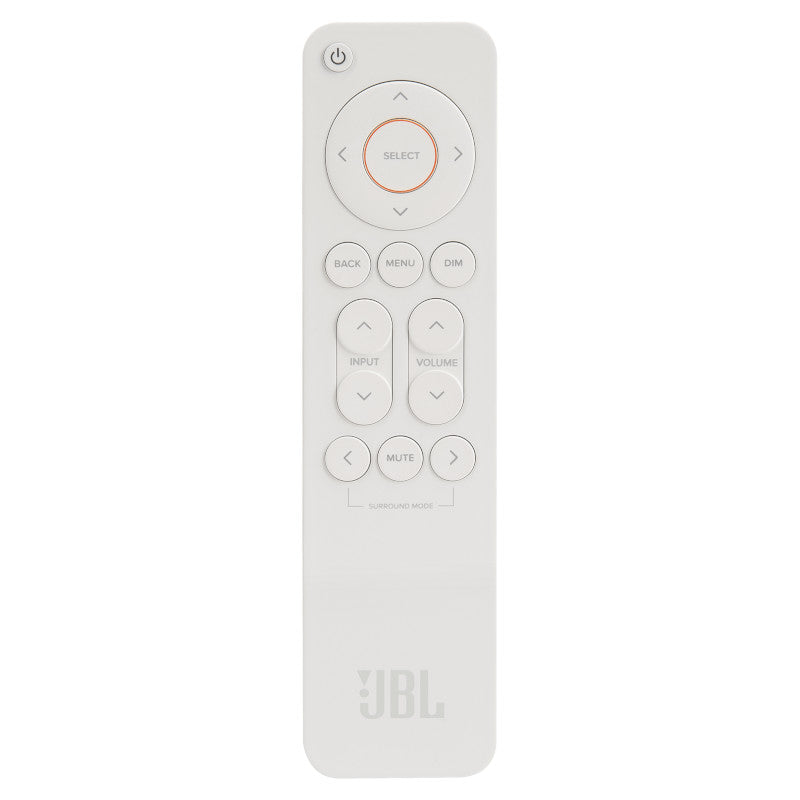

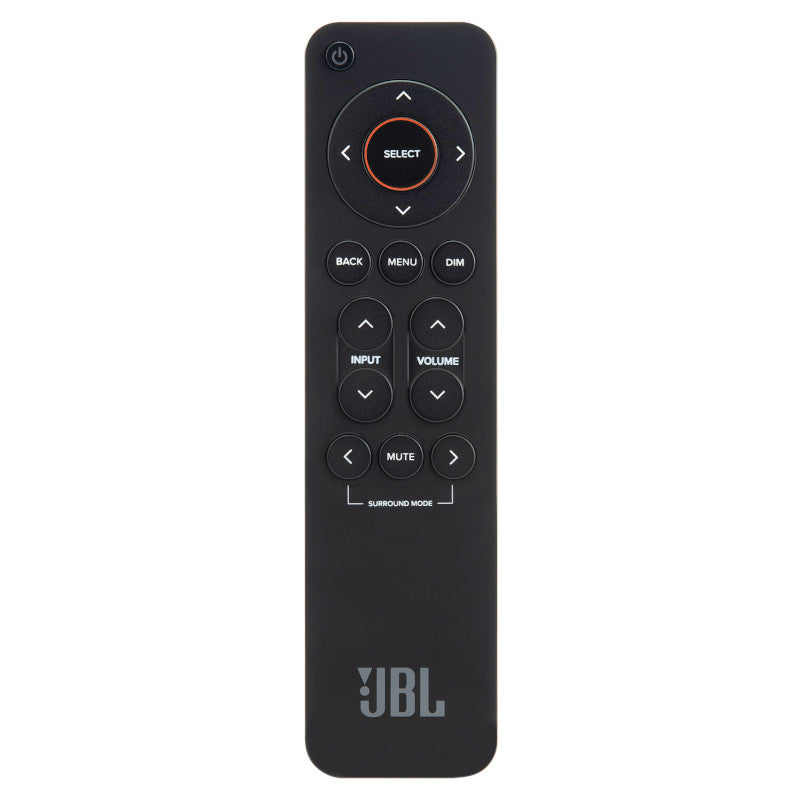

- Supplied accessories: IR remote, 2x AAA batteries, Bluetooth antenna, power cord
