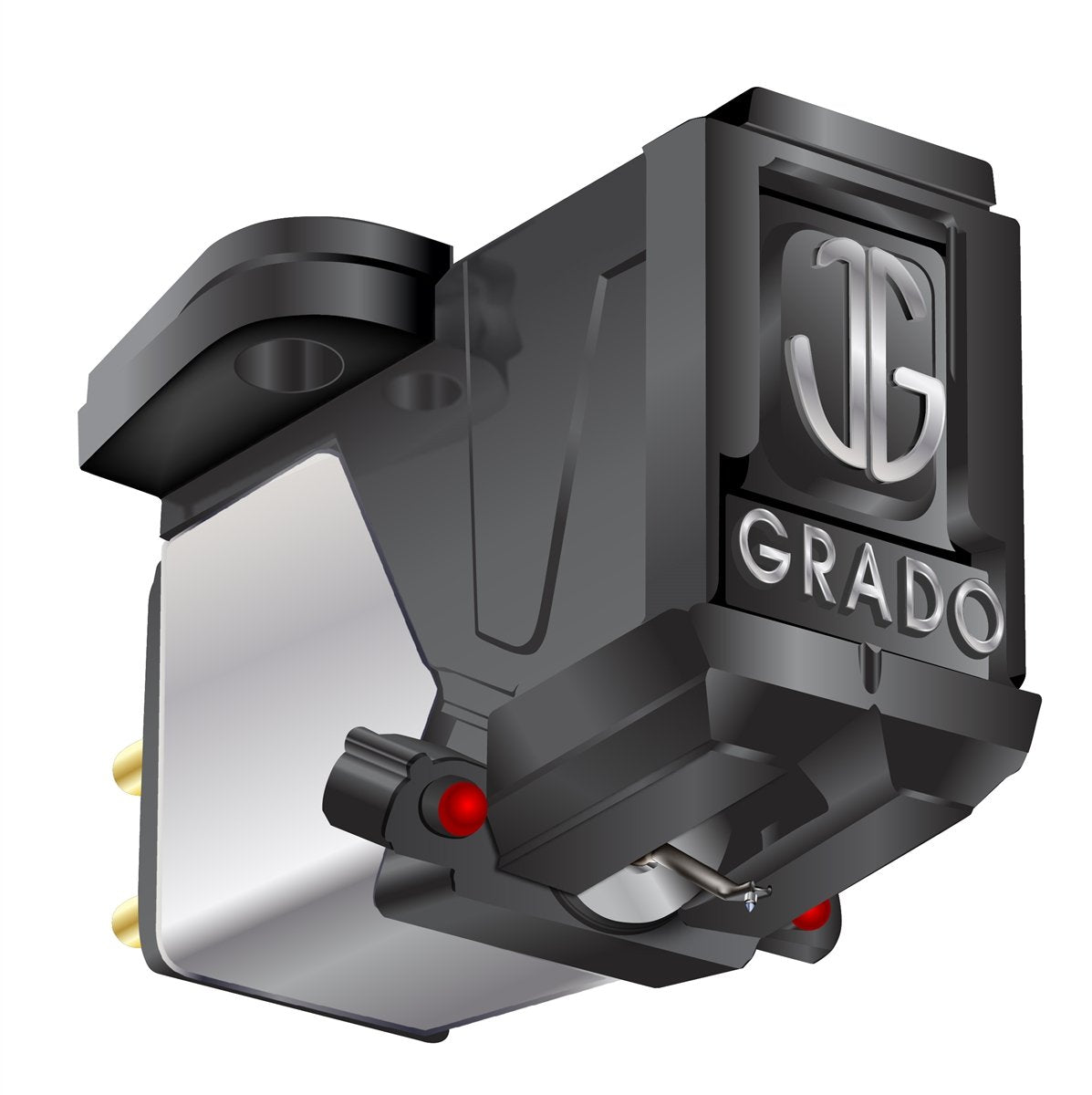

Grado Prestige Red 2 Moving Magnet Cartridge

    Description

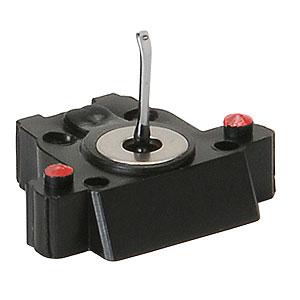

    The Red2 uses a four piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.

    Grado’s OTL, or optimised transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system. This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.

    Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.

    The Red2 is hand assembled by Grado's team in Brooklyn, with some builders having over 25 years of experience. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. The coil winding techniques using ultra high purity copper wire, which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.

    As in all Grado phono cartridges the Red2 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Red2 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.

    Features


    Hand-Built in Brooklyn

    Diamond Tipped
    Twin Magnet System
    Patented Flux-Bridge™

    Ultra High Purity Copper Coil


    Four Coil Unison


    De-Stressed Chasis


    Swiss Screw Machined

    Specifications

    Frequency Response:
    10-55
    Principal: MI
    Channel Separation at 1KHz:  30
    Input Load:  47K
    Output at 1KHz 5CM/sec.:  5mV
    Recommended Tracking Force:  1.5
    Stylus Type:  E
    Inductance:  45mH
    Resistance: 475
    Compliance CUs:  20
    User replaceable stylus
    Mounting:  S/P
    Weight:  5.5

    Grado Prestige Red 2 Moving Magnet Cartridge

      Product form

      £159.00£129.00 Incl. VAT

      • Dispatch today? Order within: Apr 24, 2024 14:00:00 +0100

        Description

        The Red2 uses a four piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.

        Grado’s OTL, or optimised transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system. This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.

        Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.

        The Red2 is hand assembled by Grado's team in Brooklyn, with some builders having over 25 years of experience. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. The coil winding techniques using ultra high purity copper wire, which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.

        As in all Grado phono cartridges the Red2 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Red2 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.

        Features


        Hand-Built in Brooklyn

        Diamond Tipped
        Twin Magnet System
        Patented Flux-Bridge™

        Ultra High Purity Copper Coil


        Four Coil Unison


        De-Stressed Chasis


        Swiss Screw Machined

        Specifications

        Frequency Response:
        10-55
        Principal: MI
        Channel Separation at 1KHz:  30
        Input Load:  47K
        Output at 1KHz 5CM/sec.:  5mV
        Recommended Tracking Force:  1.5
        Stylus Type:  E
        Inductance:  45mH
        Resistance: 475
        Compliance CUs:  20
        User replaceable stylus
        Mounting:  S/P
        Weight:  5.5
