Description

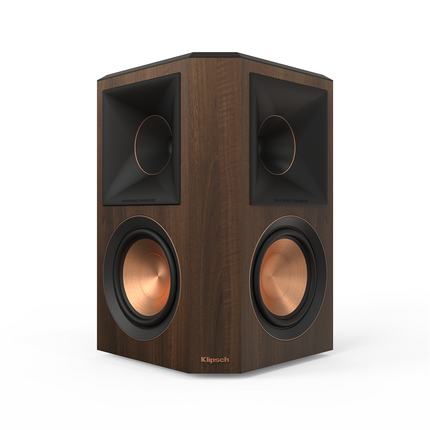

The Next Generation of our iconic Reference Premiere series, the RP-502S II Surround Speaker utilises recent improvements championed by our brand in order to curate a product series that sounds as striking as it looks. The RP-502S II incorporates not only our recent developments in the production of their Tractrix horn, Tweeter design, and Cerametallic woofers, but in addition, have developed further our proprietary Wide Dispersion Surround Technology that helps provide astonishing detail and sweeping soundstage, making these the ideal corner solution.
90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximises efficiency and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed moulded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimises distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminium shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.
WIDE DISPERSION SURROUND TECHNOLOGY
As the cornerstone of every Klipsch surround speaker, proprietary Wide Dispersion Surround Technology (WDST) provides astounding sonic detail – for lifelike, cinematic sound in any room, even with less-than-ideal placement configurations.
NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminium binding posts for any connection type.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

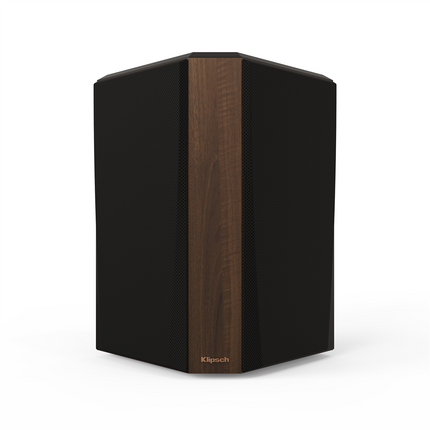

The attractive grille attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece and the runner bumpers of the previous generation have been replaced with Cork pads, for increased security on a stand or table.
Features
1" Titanium LTS Vented Tweeter with Hybrid Tractrix Horn
Dual 5.25" Spun Copper Cerametallic Woofers
Enclosed cabinet design
Premium Scratch Resistant Ebony and Walnut vinyl finishes
Strong, Flexible Removable Magnetic Grille
Specifications
| Frequency Response: |
62-25kHz +/- 3dB |
| Sensitivity: |
94dB @ 2.83V / 1m
|
| Power Handling (Cont/Peak): |
100W/400W
|
| Nominal Impedance: |
8Ω Compatible |
| Crossover Frequency: |
1500Hz |
|
High Frequency Driver:
|
1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
|
| Low Frequency Driver: |
Dual 5.25" Cerametallic Woofers with Faraday rings |
| Enclosure Material: |
MDF (Internally braced) |
| Enclosure Type: |
Sealed |
| Inputs: |
Single Binding Posts |
| Dimensions (H x W x D): |
36.0 x 30.3 x 19.4cm |
| Weight: |
97.6kg |
| Finishes: |
Ebony vinyl, Walnut vinyl |
| Included Accessories: |
Rubber Feet (8) |
