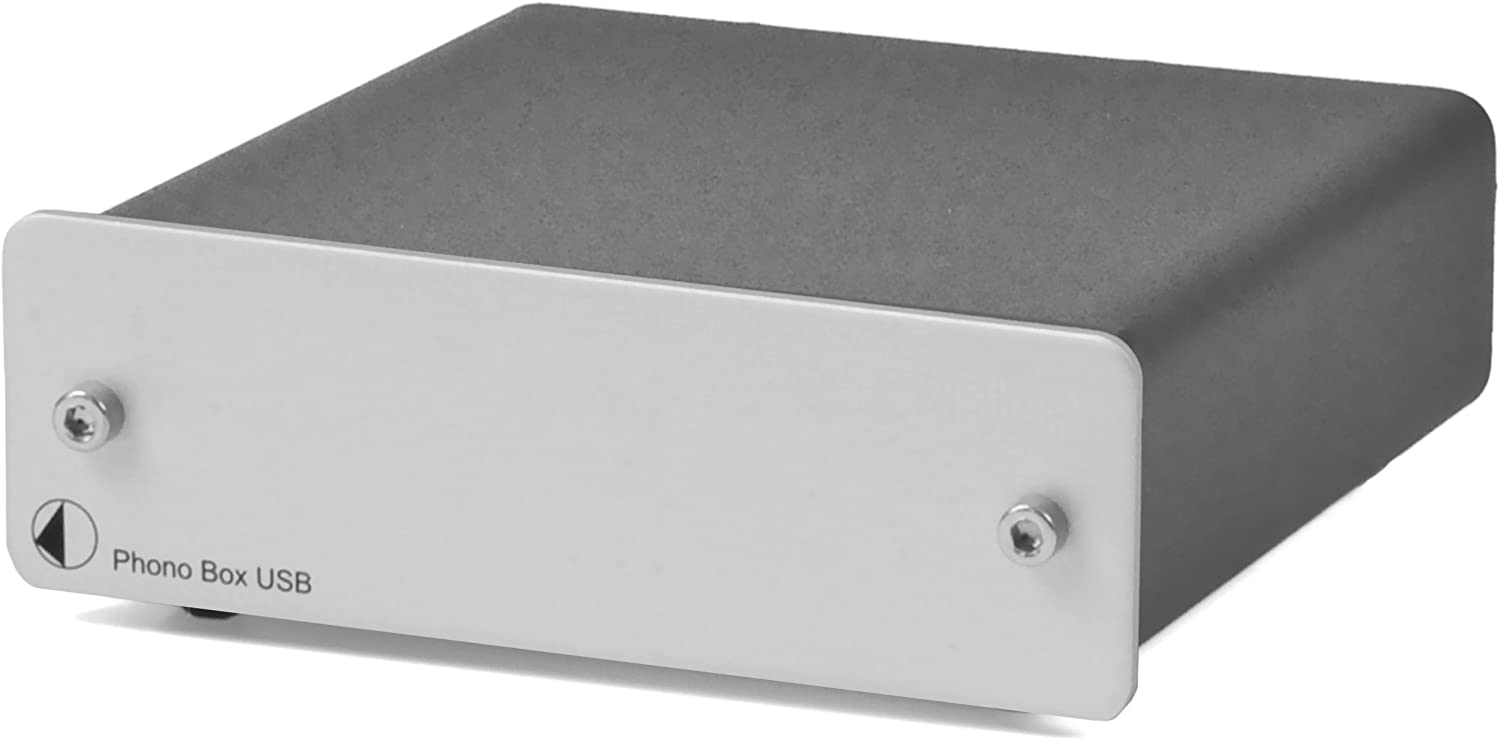

Pro-Ject Phono Box MM/MC USB Preamplifier

    Description

    Phono Box USB is an ideal phono preamplifier for both your hifi system and vinyl recording to PC or Mac. MM and MC cartridges will be welcome. The analogue output of Phono Box USB can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.

    Features

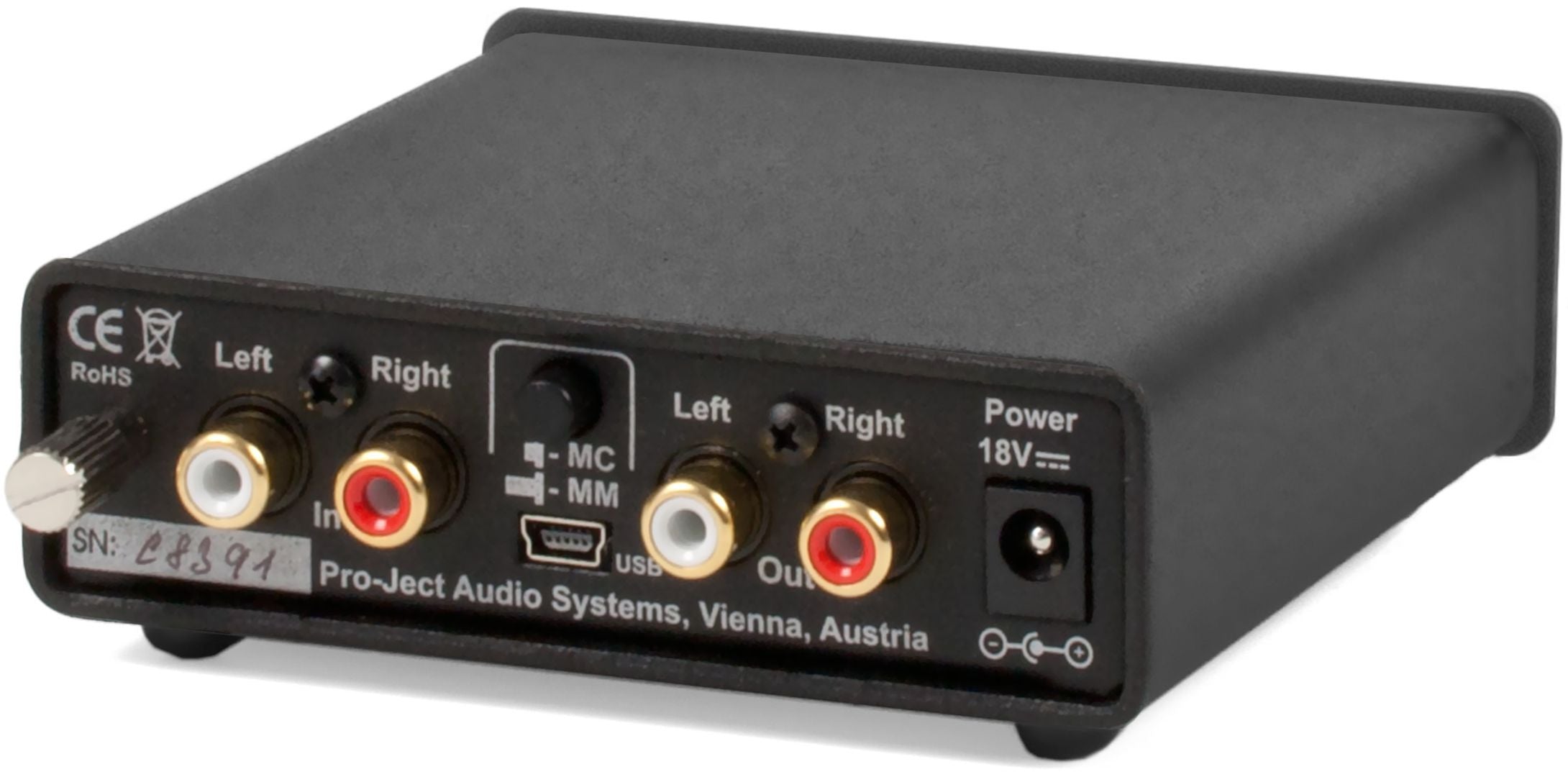

    • Preamplifier for MM or MC with switch on rear panel
    • Precise RIAA equalisation
    • High quality A/D conversion with USB out to PC/Mac
    • Compatible with Windows®, MacOS® & Linux
    • SMD technology for shortest signal paths
    • Output stage with ultra-low impedance
    • Gold-plated RCA sockets
    • DC power supply (< 1 watt standby power)

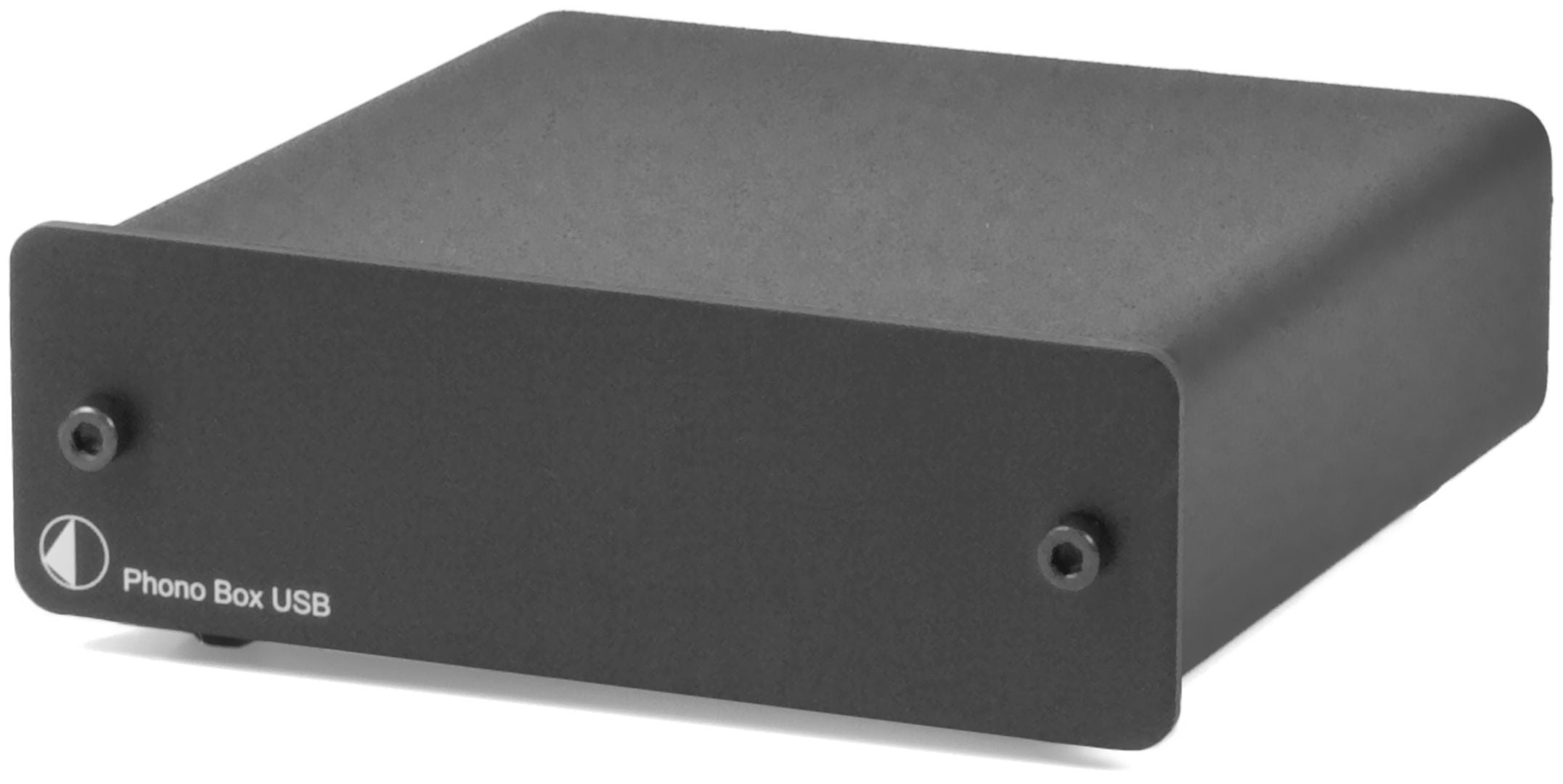

    • Faceplate available in black and silver

    Specifications

    Load capacitance /impedance MM: 47 KOhms / 120 pF MC: 100 ohms / 120 pF
    Gain, MM 40 dB
    Output voltage typically 300 mV / 1 kHz @ 3 mV /1 kHz (MM input)
    Gain, MC 60 dB
    Gain, line level input 11 dB
    Max. output 9,5 Vrms (1kHz)
    Noise floor, MM 94 dB (94 dB - A weighted)
    Noise floor, MC 75 dB (75 dB - A weighted)
    THD, MM/ MC 0.01% / 0.05%
    RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0.5 dB
    Phono Input / line output 1 Paar RCA Buchsen
    A/D converter 16-Bit Delta Sigma
    Sampling rates 32, 44,1, 48 kHz
    USB output digital serial data protocol USB 1.1
    Operating systems Windows®, MacOS® & Linux
    Standby power consumption < 1 Watt
    Dimensions W x H x D (D with sockets) 103 x 36 x 104 (115 mm with sockets)
    Weight 570 g

    Read more

    Pro-Ject Phono Box MM/MC USB Preamplifier

      Product form

      £85.00 Incl. VAT

          Description

          Phono Box USB is an ideal phono preamplifier for both your hifi system and vinyl recording to PC or Mac. MM and MC cartridges will be welcome. The analogue output of Phono Box USB can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.

          Features

          • Preamplifier for MM or MC with switch on rear panel
          • Precise RIAA equalisation
          • High quality A/D conversion with USB out to PC/Mac
          • Compatible with Windows®, MacOS® & Linux
          • SMD technology for shortest signal paths
          • Output stage with ultra-low impedance
          • Gold-plated RCA sockets
          • DC power supply (< 1 watt standby power)
          • Faceplate available in black and silver

          Specifications

          Load capacitance /impedance MM: 47 KOhms / 120 pF MC: 100 ohms / 120 pF
          Gain, MM 40 dB
          Output voltage typically 300 mV / 1 kHz @ 3 mV /1 kHz (MM input)
          Gain, MC 60 dB
          Gain, line level input 11 dB
          Max. output 9,5 Vrms (1kHz)
          Noise floor, MM 94 dB (94 dB - A weighted)
          Noise floor, MC 75 dB (75 dB - A weighted)
          THD, MM/ MC 0.01% / 0.05%
          RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0.5 dB
          Phono Input / line output 1 Paar RCA Buchsen
          A/D converter 16-Bit Delta Sigma
          Sampling rates 32, 44,1, 48 kHz
          USB output digital serial data protocol USB 1.1
          Operating systems Windows®, MacOS® & Linux
          Standby power consumption < 1 Watt
          Dimensions W x H x D (D with sockets) 103 x 36 x 104 (115 mm with sockets)
          Weight 570 g
