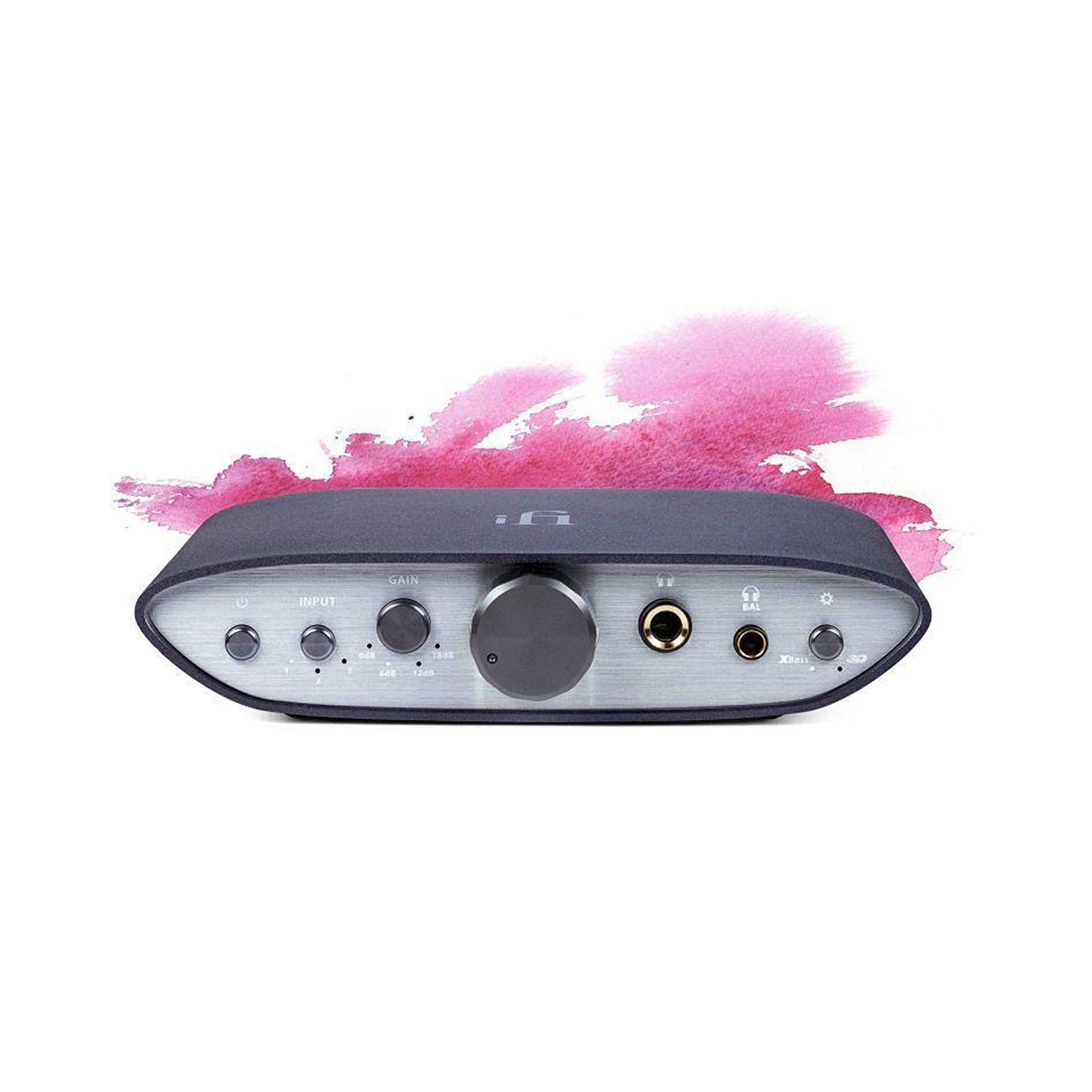

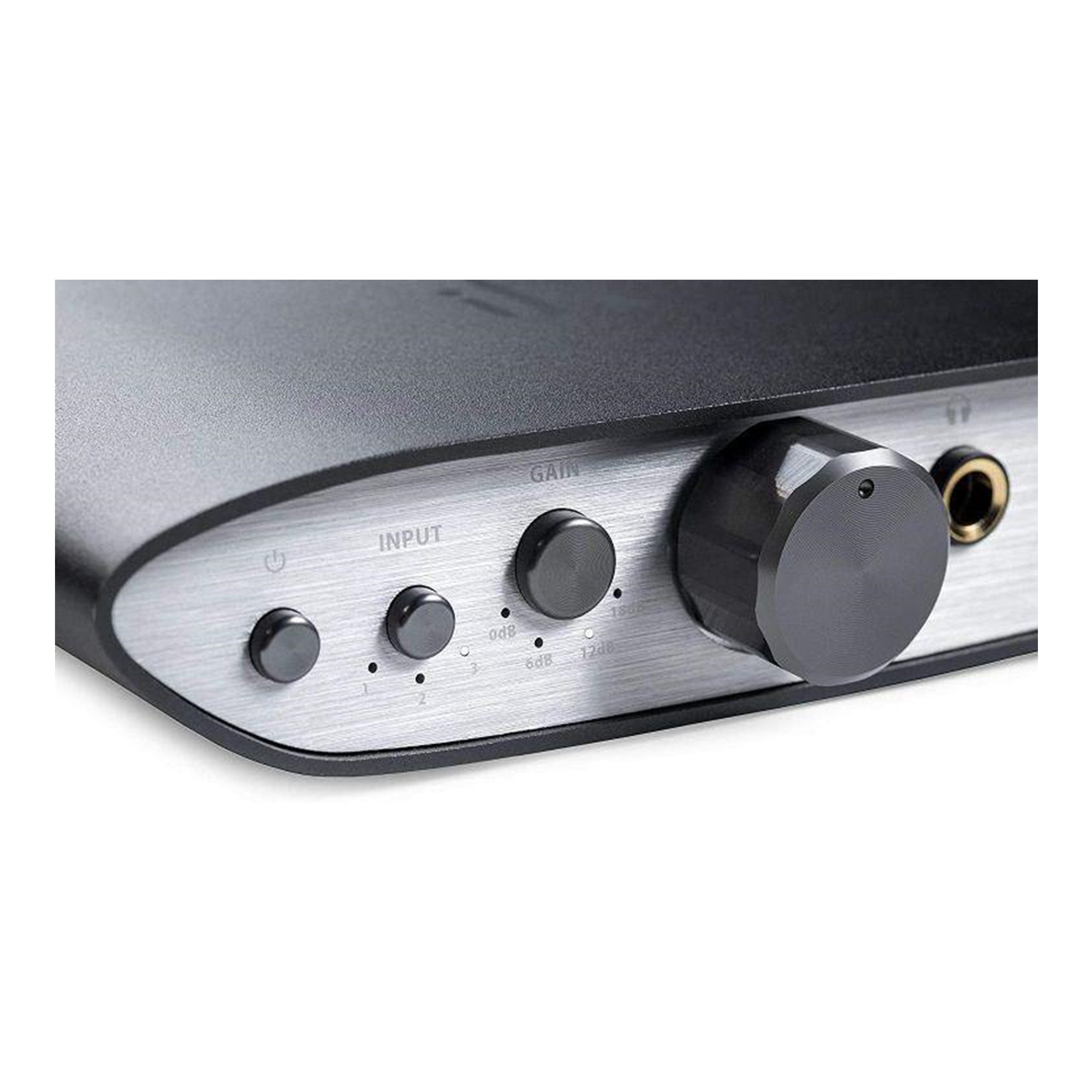

iFi ZEN CAN Balanced Desktop Headphone Amp and Preamplifier

    Description

    • SUPERIOR ENGINEERING - Extremely low distortion and noise from a circuit design inspired by our flagship headphone amp which uses a dedicated input stage that level matches to your source, allowing the signal to flow freely through the Class A output stage, literally music to your ears
    • POWER REALIZED - Maximise the performance of your headphones, more than just getting loud, but realizing the full dynamic range of the drivers and experiencing soft vocals as well as heart pounding drums, never missing a beat. Delivers up to 1600mW of power at 16 ohms
    • IMMERSIVE SOUND - Enhanced with our signature analog signal processing to deliver accurate and more natural bass frequencies through XBass, and to present a wider soundstage that brings the music out in front of you through our 3D matrix which replicates speaker listening without the cumbersome setup

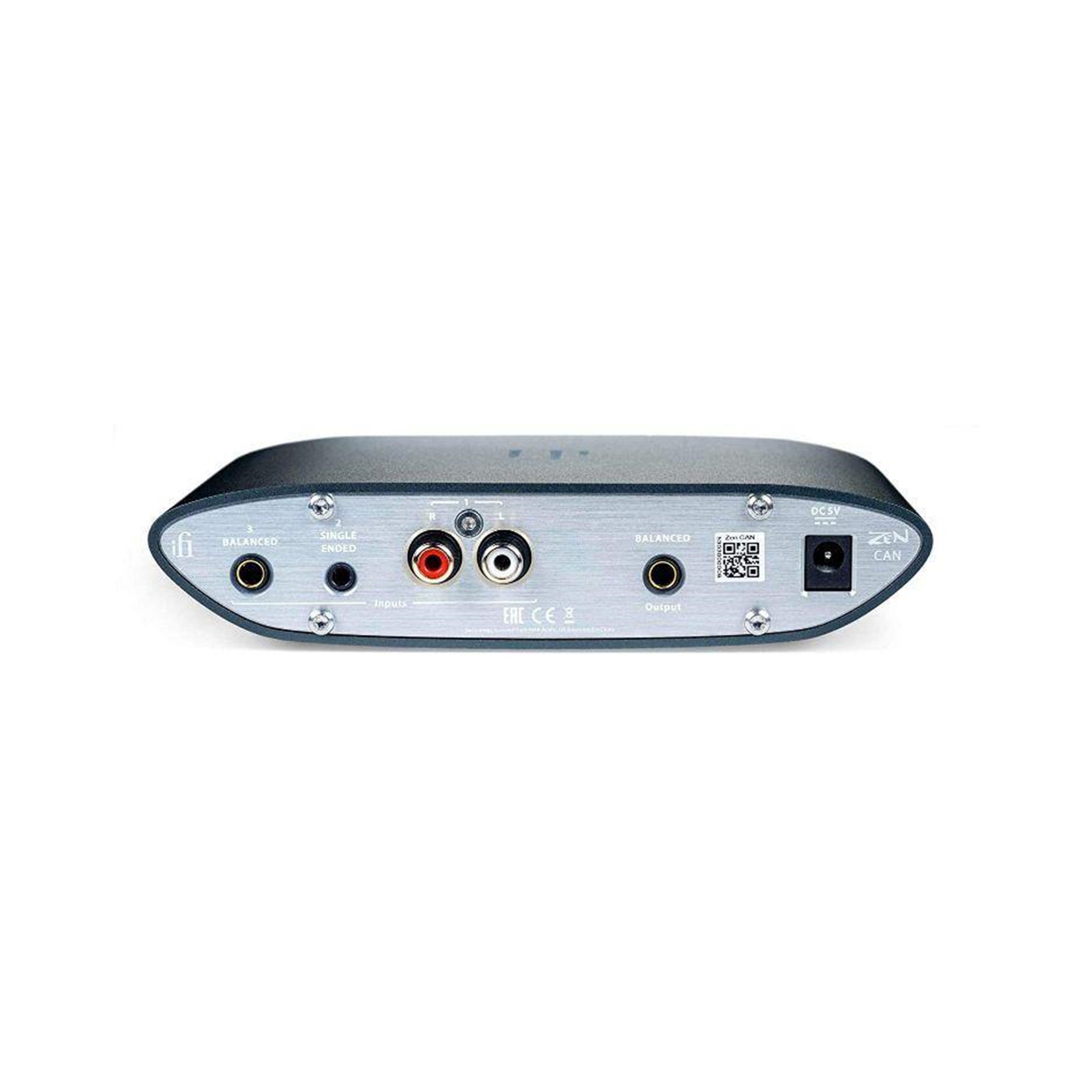

    • THE INS AND OUTS - Features both a balanced 4.4mm pentacon and a single ended 6.3mm (1/4”) headphone output on the front as well as three inputs on the back, including a 3.5mm line out, RCA left and right sockets, and a 4.4mm balanced pentacon connector. Additionally there is a 4.4 balanced output to connect to a power amplifier or active speakers for use as a preamplifier

      FeaturesZEN CAN HEADPHONE AMPLIFIER

      Specifications

      Inputs 4.4mm Pentacon BAL
      RCA L/R Socket SE
      3.5mm Jack SE      		 4.0V nominal @ 0dBFS, 24 kOhm Zin
      2.0V nominal @ 0dBFS, 1 MegOhm Zin
      1.0V nominal @ 0dBFS, 1 MegOhm Zin
      Max Output Balanced >15.1V/385 mW (@ 600 Ohm)
      >11.0V/1890 mW (@ 64 Ohm)
      S-E >7.6V/196 mW (@ 300 Ohm)
      >7.2V/1600 mW (@ 32 Ohm)
      THD & N Balanced
      S-E      		 < 0.0007% (4V out, 600 Ohm, 1kHz)
      <0.006% (@ 100 mW/1.27V 16 Ohm)
      SNR Balanced
      S-E      		 >120dBA (@ 15.2V)
      >118dBA (@ 7.6V)
      Max. Input Balanced
      RCA
      3.5mm      		 7.4V RMS
      3.8V RMS
      1.92V RMS
      Gain 0dB, 6dB, 12dB and 18dB
      Frequency Response 20Hz - 20kHz (+0dB / -0.03dB)
      Power consumption No Signal
      Max Signal      		 ~5W
      ~13W
      Input voltage
      		 DC 5V/2.5A
      AC 100 -240V
      50/60Hz
      Dimensions 158 x117 x35 mm
      6.2" x 4.6" x 1.4"
      Net weight 515g (1.14 Ibs)
      Warranty period 12 months

      Read more

      iFi ZEN CAN Balanced Desktop Headphone Amp and Preamplifier

        Product form

        £199.00£179.00 Incl. VAT

        5 in stock Delivered less than 36 hours

        • Dispatch today? Order within: Dec 06, 2023 14:00:00 +0000

          Description

          • SUPERIOR ENGINEERING - Extremely low distortion and noise from a circuit design inspired by our flagship headphone amp which uses a dedicated input stage that level matches to your source, allowing the signal to flow freely through the Class A output stage, literally music to your ears
          • POWER REALIZED - Maximise the performance of your headphones, more than just getting loud, but realizing the full dynamic range of the drivers and experiencing soft vocals as well as heart pounding drums, never missing a beat. Delivers up to 1600mW of power at 16 ohms
          • IMMERSIVE SOUND - Enhanced with our signature analog signal processing to deliver accurate and more natural bass frequencies through XBass, and to present a wider soundstage that brings the music out in front of you through our 3D matrix which replicates speaker listening without the cumbersome setup
          • THE INS AND OUTS - Features both a balanced 4.4mm pentacon and a single ended 6.3mm (1/4”) headphone output on the front as well as three inputs on the back, including a 3.5mm line out, RCA left and right sockets, and a 4.4mm balanced pentacon connector. Additionally there is a 4.4 balanced output to connect to a power amplifier or active speakers for use as a preamplifier

            FeaturesZEN CAN HEADPHONE AMPLIFIER

            Specifications

            Inputs 4.4mm Pentacon BAL
            RCA L/R Socket SE
            3.5mm Jack SE            		 4.0V nominal @ 0dBFS, 24 kOhm Zin
            2.0V nominal @ 0dBFS, 1 MegOhm Zin
            1.0V nominal @ 0dBFS, 1 MegOhm Zin
            Max Output Balanced >15.1V/385 mW (@ 600 Ohm)
            >11.0V/1890 mW (@ 64 Ohm)
            S-E >7.6V/196 mW (@ 300 Ohm)
            >7.2V/1600 mW (@ 32 Ohm)
            THD & N Balanced
            S-E            		 < 0.0007% (4V out, 600 Ohm, 1kHz)
            <0.006% (@ 100 mW/1.27V 16 Ohm)
            SNR Balanced
            S-E            		 >120dBA (@ 15.2V)
            >118dBA (@ 7.6V)
            Max. Input Balanced
            RCA
            3.5mm            		 7.4V RMS
            3.8V RMS
            1.92V RMS
            Gain 0dB, 6dB, 12dB and 18dB
            Frequency Response 20Hz - 20kHz (+0dB / -0.03dB)
            Power consumption No Signal
            Max Signal            		 ~5W
            ~13W
            Input voltage
            		 DC 5V/2.5A
            AC 100 -240V
            50/60Hz
            Dimensions 158 x117 x35 mm
            6.2" x 4.6" x 1.4"
            Net weight 515g (1.14 Ibs)
            Warranty period 12 months
