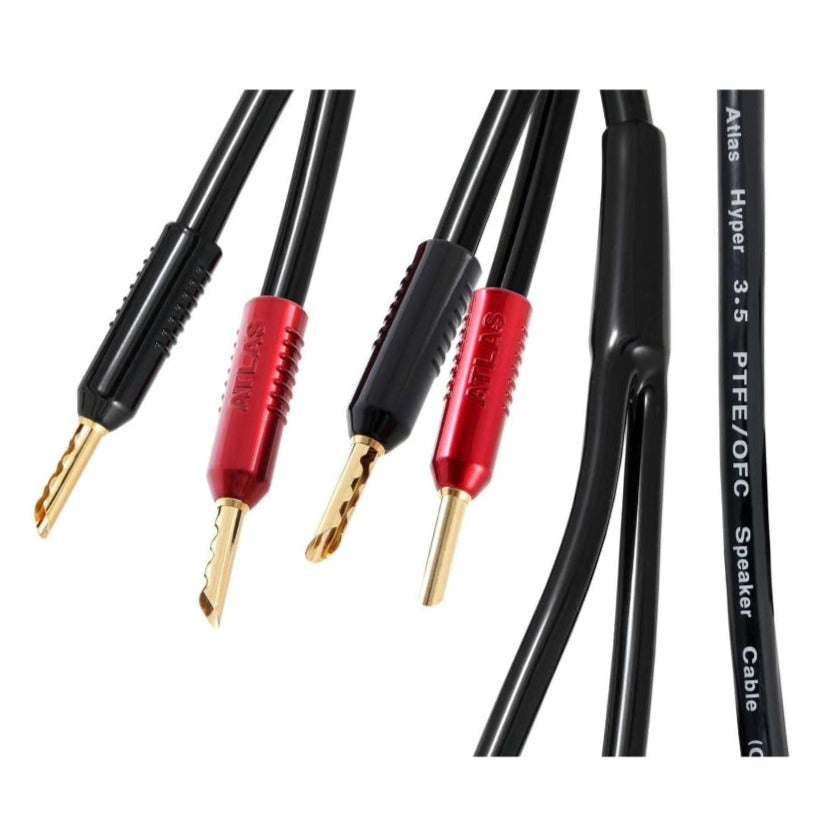

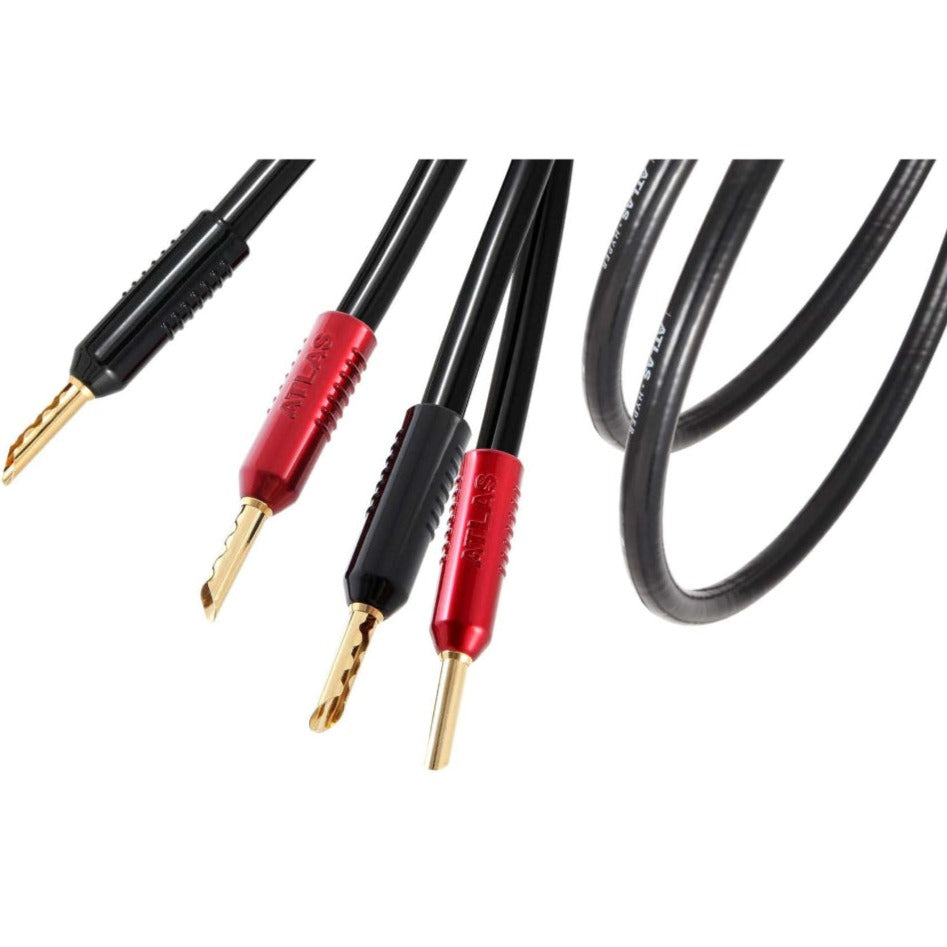

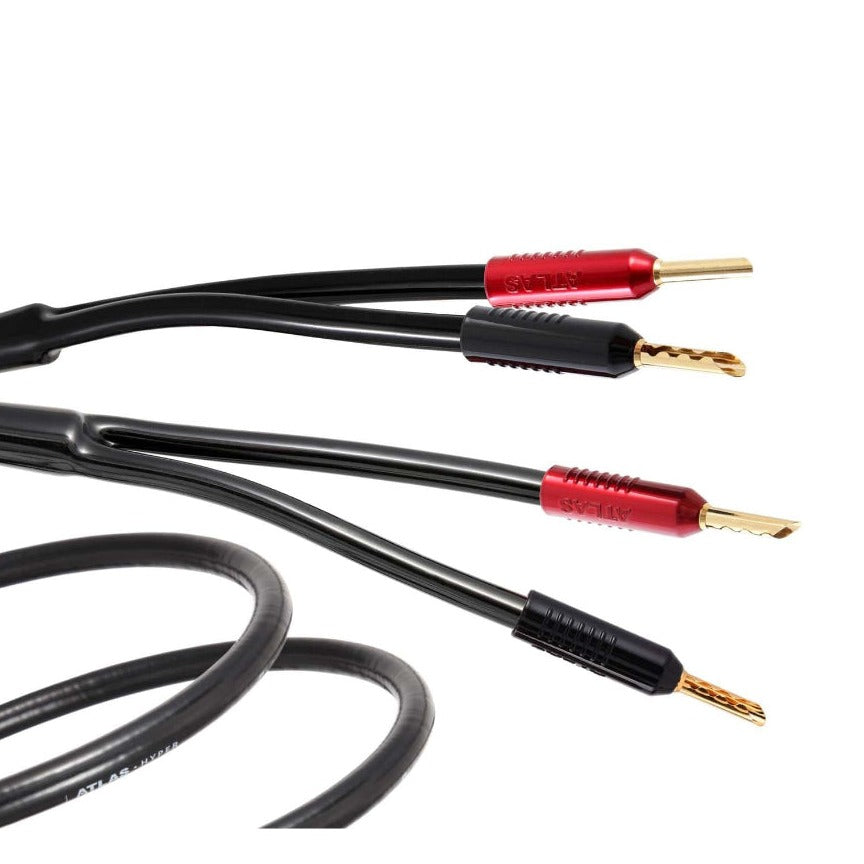

Atlas Hyper Achromatic Z 3.5 Speaker Cables

    Description

    Developed by Atlas in consultation with a number of leading audio manufacturers.

    A sophisticated cable engineered to offer a higher level of transparency than products typically supplied in ‘single-brand’ systems.

    We’re regularly asked by users of ‘single-brand’ systems from companies such as Naim and Linn if our cables could improve their system without sacrificing its essential character.

    It’s relatively easy to deliver an improvement in a specific area, but more difficult to create a cable that improves on overall detail, accuracy and open-ness without losing the signature speed and character of these systems.

    All Atlas cables are designed to impose as little of any inherent character as possible, achieved through careful selection of materials and construction methods, but we feel this latest generation Hyper cable is exceptionally transparent, allowing the equipment characteristics to be conveyed intact.

    The cable employs conductors comprising 72 0.25mm² high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration filler and finished in the Hyper gloss black sleeve.

    Default termination is with the Atlas Tin Cobalt finished metal Z plug. This Aluminium alloy Z plug body has the same non magnetic qualities of its very popular black ABS brother as well as it’s insulating qualities (plug body to plug body). Also available terminated with our cold-weld high quality OFC spades or our Transpose Modular Termination System. Transpose options include Z-plugs or OFC spades in gold or silver.

    Features

    Connector Type - Achromatic Z

    Our proprietary Beryllium Achromatic Z Plug is a low-mass, self-cleaning, solder-free construction speaker plug. These cables can also be supplied with an OFC spade tag option at one or both ends, please specify when ordering.

    Conductor Material - OFC

    OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.

    Dielectric Material - PEF

    Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.

    Construction - Twin-core round

    A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a protective round PVC sheath.

    Specifications

    Construction Twin-core round
    Material 6n OFC
    Dielectric PTFE (Teflon™)
    Screen none
    Capacitance 53.52 pF/m
    Inductance 0.592 µH/m
    Resistance 0.0049 Ohms/m
    VOP 0.72
    Outside Diameter 8.5mm
    Warranty 5 Years

    Atlas Hyper Achromatic Z 3.5 Speaker Cables

      Product form

      £280.00 Incl. VAT

      • Dispatch today? Order within: Dec 06, 2023 14:00:00 +0000

        Description

        Developed by Atlas in consultation with a number of leading audio manufacturers.

        A sophisticated cable engineered to offer a higher level of transparency than products typically supplied in ‘single-brand’ systems.

        We’re regularly asked by users of ‘single-brand’ systems from companies such as Naim and Linn if our cables could improve their system without sacrificing its essential character.

        It’s relatively easy to deliver an improvement in a specific area, but more difficult to create a cable that improves on overall detail, accuracy and open-ness without losing the signature speed and character of these systems.

        All Atlas cables are designed to impose as little of any inherent character as possible, achieved through careful selection of materials and construction methods, but we feel this latest generation Hyper cable is exceptionally transparent, allowing the equipment characteristics to be conveyed intact.

        The cable employs conductors comprising 72 0.25mm² high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration filler and finished in the Hyper gloss black sleeve.

        Default termination is with the Atlas Tin Cobalt finished metal Z plug. This Aluminium alloy Z plug body has the same non magnetic qualities of its very popular black ABS brother as well as it’s insulating qualities (plug body to plug body). Also available terminated with our cold-weld high quality OFC spades or our Transpose Modular Termination System. Transpose options include Z-plugs or OFC spades in gold or silver.

        Features

        Connector Type - Achromatic Z

        Our proprietary Beryllium Achromatic Z Plug is a low-mass, self-cleaning, solder-free construction speaker plug. These cables can also be supplied with an OFC spade tag option at one or both ends, please specify when ordering.

        Conductor Material - OFC

        OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.

        Dielectric Material - PEF

        Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.

        Construction - Twin-core round

        A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a protective round PVC sheath.

        Specifications

        Construction Twin-core round
        Material 6n OFC
        Dielectric PTFE (Teflon™)
        Screen none
        Capacitance 53.52 pF/m
        Inductance 0.592 µH/m
        Resistance 0.0049 Ohms/m
        VOP 0.72
        Outside Diameter 8.5mm
        Warranty 5 Years
