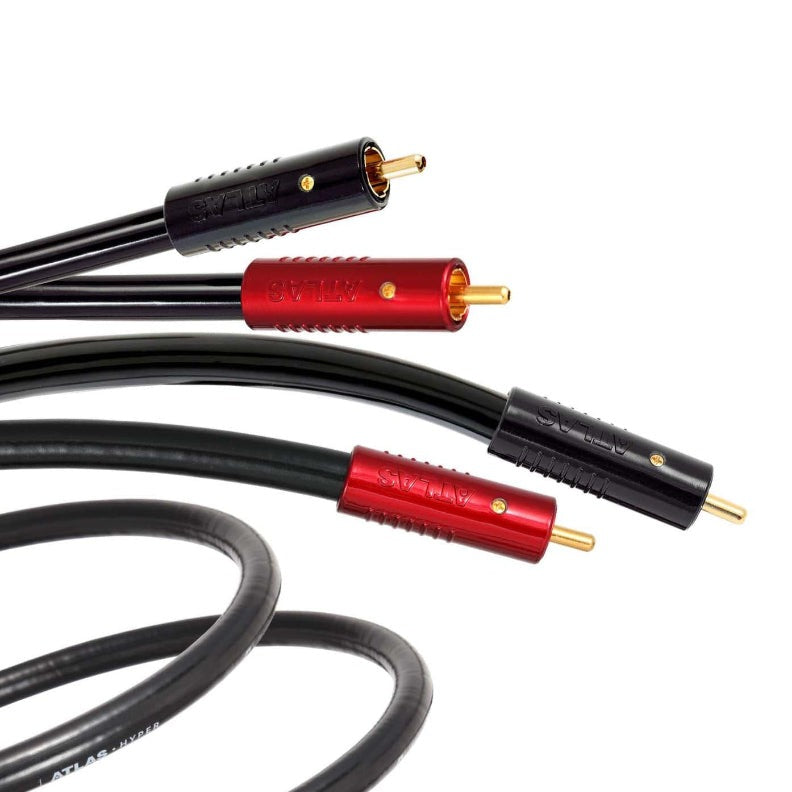

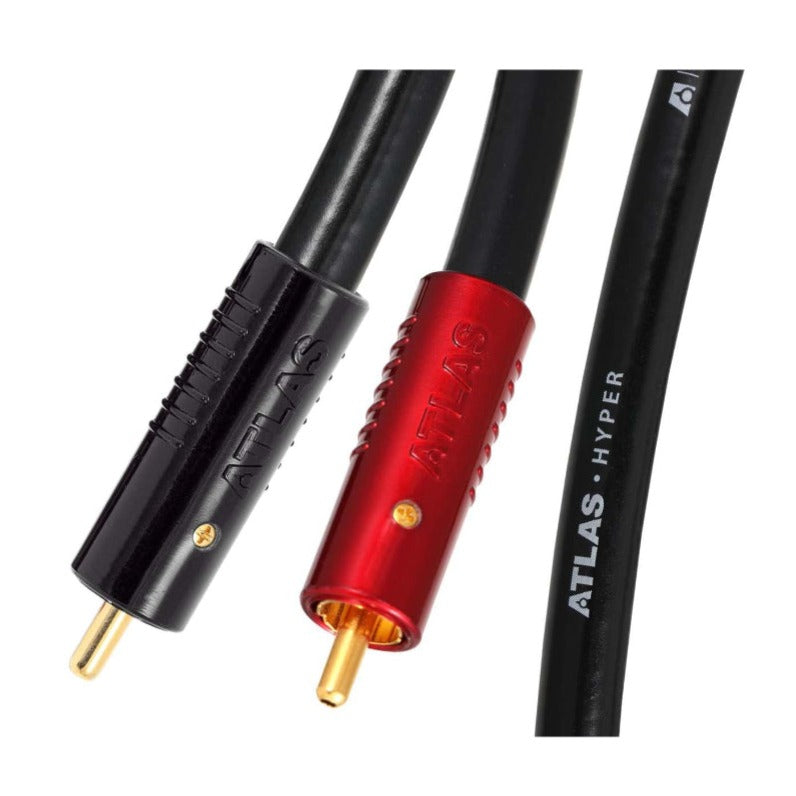

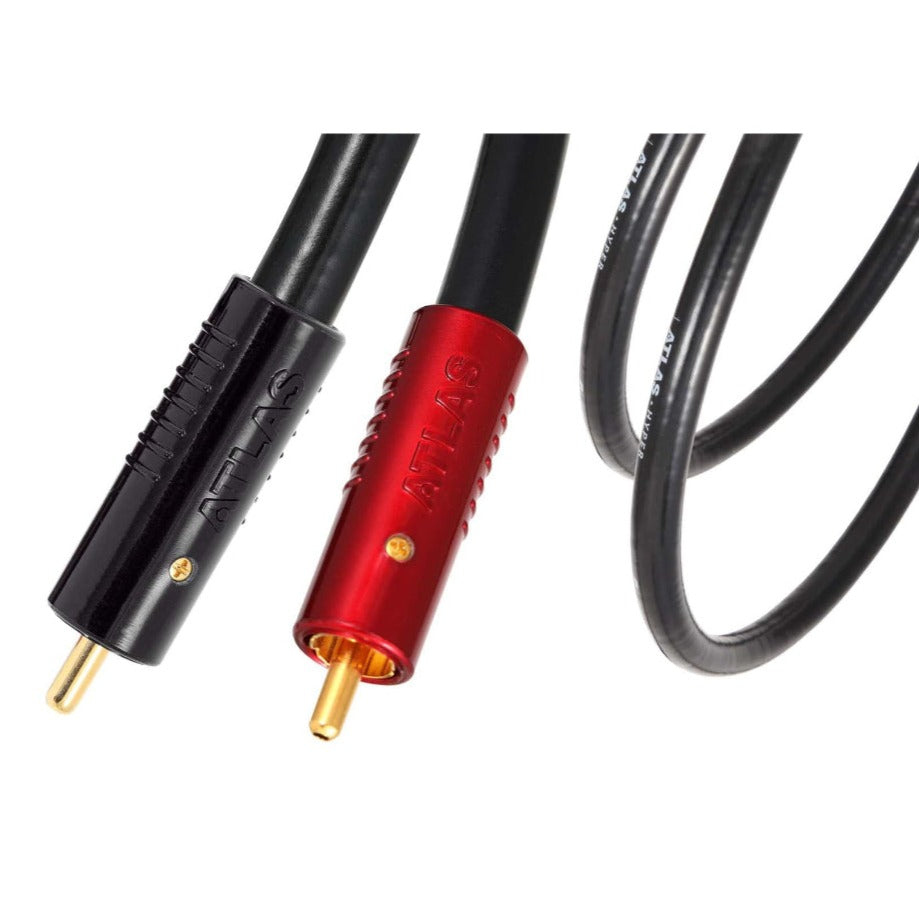

Atlas Hyper Achromatic RCA Analogue Interconnect Cables

    Description

    The latest generation Hyper Achromatic offers a sophisticated, evenly balanced sound which draws you into the musical performance.

    A stereo interconnect with a high level of transparency, ideally suited to improving mid-level systems.

    Hyper utilises an OCC (Ohno Continous Casting) high purity copper conductor with a PEF (Foamed Polyethylene) dielectric, This design and construction combines wide bandwidth with excellent resistance to RFI (Radio Frequency Interference), which can raise noise levels, resulting in a loss of low level detail, in a poorly shielded cable, The Hyper Achromatic is fitted with Atlases self-cleaning (just remove and insert it to clean the contact areas) Achromatic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, optimised to create a coherent, continuous signal path.

    The end result is a natural-sounding interconnect which achieves a large open soundstage and fine levels of resolution without any sense of exaggerated ‘detail’ which is superficially impressive but quickly fatiguing to listen to.

    The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.

    Features

    Achromatic RCA

    Connector Type - Achromatic RCA Plug

    The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

    Achromatic RCA component parts

    Conductor Material - OCC Copper

    OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



    Dielectric Material - PEF

    PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.




    Construction - Co-ax

    Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.  Explore More



    Specifications

    Construction Co-ax
    Material 6n OCC Copper
    Dielectric PEF
    Screen OFC 94.2% – 252 strands
    Capacitance 71.54 pF/m
    Inductance 0.542 µH/m
    Resistance 0.0239 Ohms/m
    VOP 0.682
    Outside Diameter 9.0mm

    Atlas Hyper Achromatic RCA Analogue Interconnect Cables

      Product form

      £170.00 Incl. VAT

          Description

          The latest generation Hyper Achromatic offers a sophisticated, evenly balanced sound which draws you into the musical performance.

          A stereo interconnect with a high level of transparency, ideally suited to improving mid-level systems.

          Hyper utilises an OCC (Ohno Continous Casting) high purity copper conductor with a PEF (Foamed Polyethylene) dielectric, This design and construction combines wide bandwidth with excellent resistance to RFI (Radio Frequency Interference), which can raise noise levels, resulting in a loss of low level detail, in a poorly shielded cable, The Hyper Achromatic is fitted with Atlases self-cleaning (just remove and insert it to clean the contact areas) Achromatic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, optimised to create a coherent, continuous signal path.

          The end result is a natural-sounding interconnect which achieves a large open soundstage and fine levels of resolution without any sense of exaggerated ‘detail’ which is superficially impressive but quickly fatiguing to listen to.

          The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.

          Features

          Achromatic RCA

          Connector Type - Achromatic RCA Plug

          The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

          Achromatic RCA component parts

          Conductor Material - OCC Copper

          OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



          Dielectric Material - PEF

          PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.




          Construction - Co-ax

          Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.  Explore More



          Specifications

          Construction Co-ax
          Material 6n OCC Copper
          Dielectric PEF
          Screen OFC 94.2% – 252 strands
          Capacitance 71.54 pF/m
          Inductance 0.542 µH/m
          Resistance 0.0239 Ohms/m
          VOP 0.682
          Outside Diameter 9.0mm
