Atlas

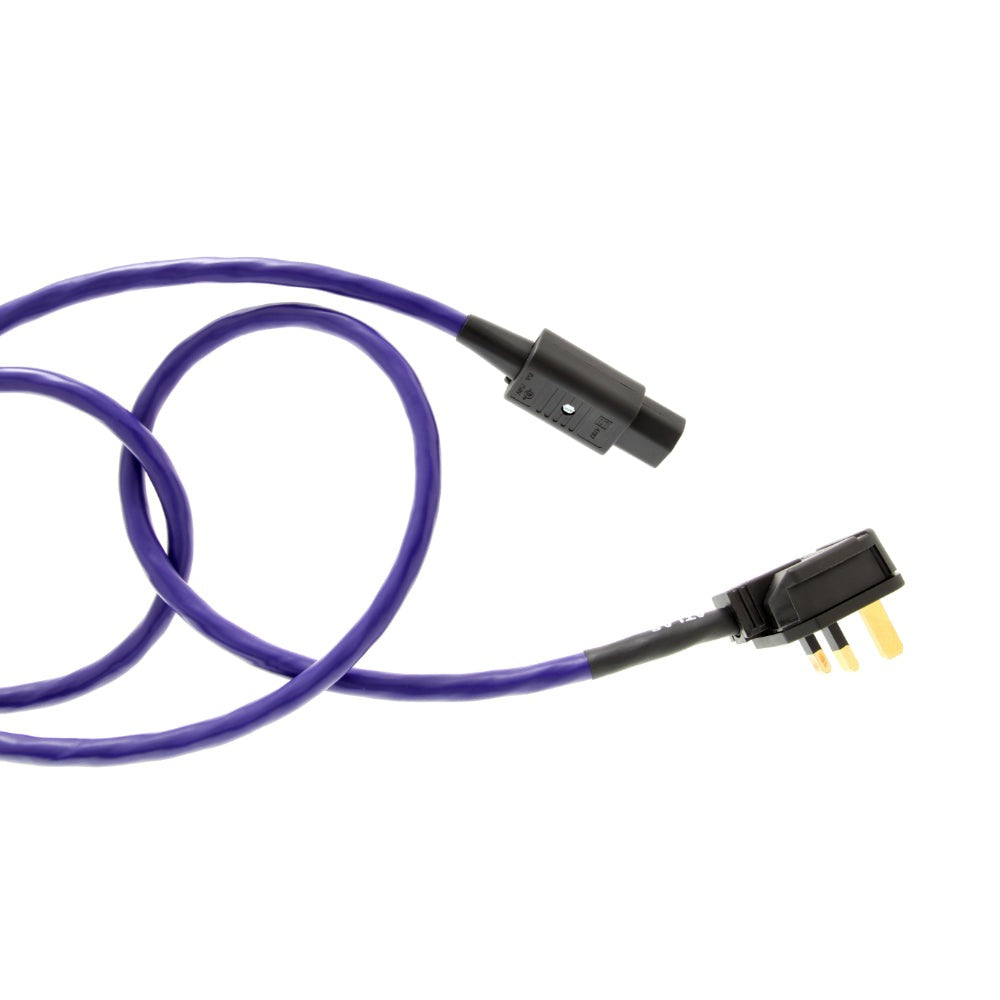

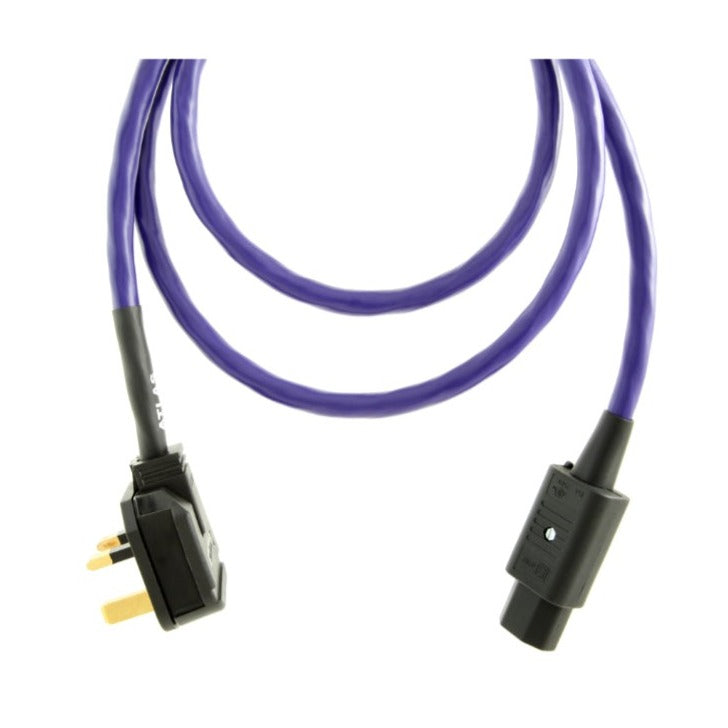

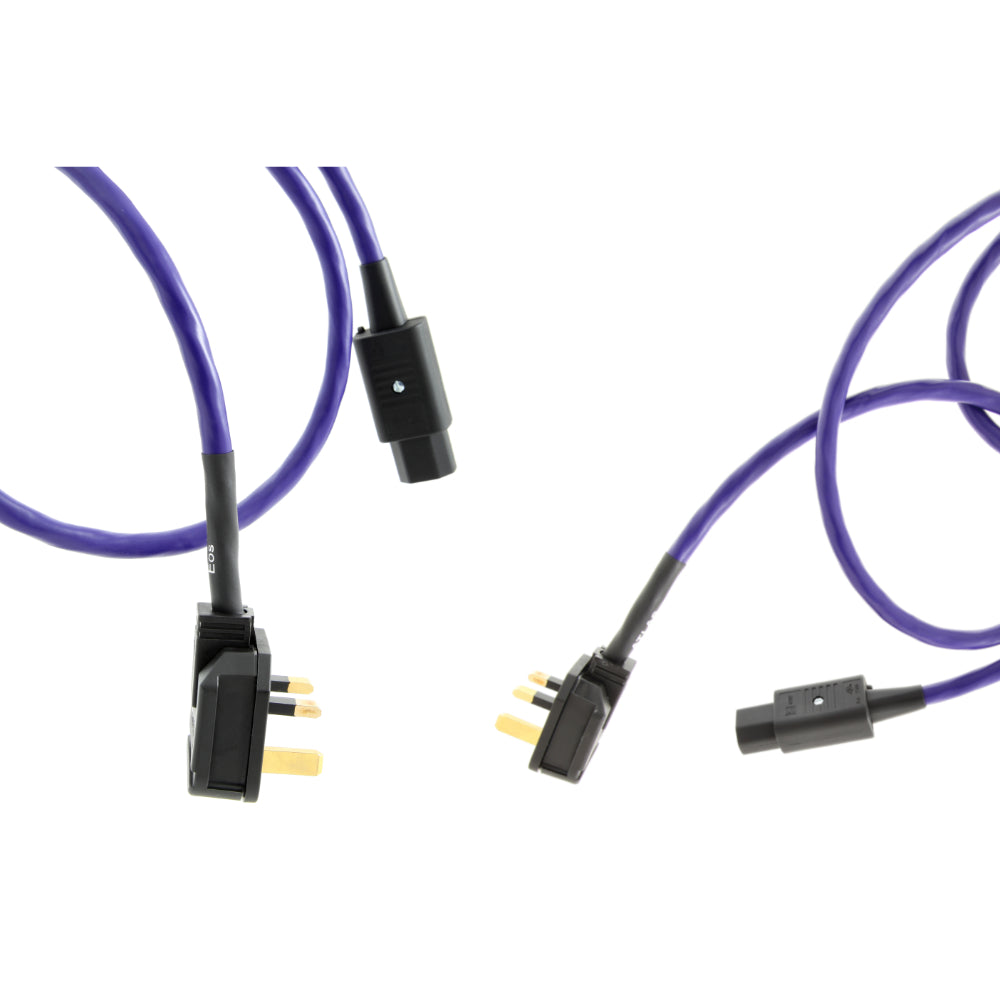

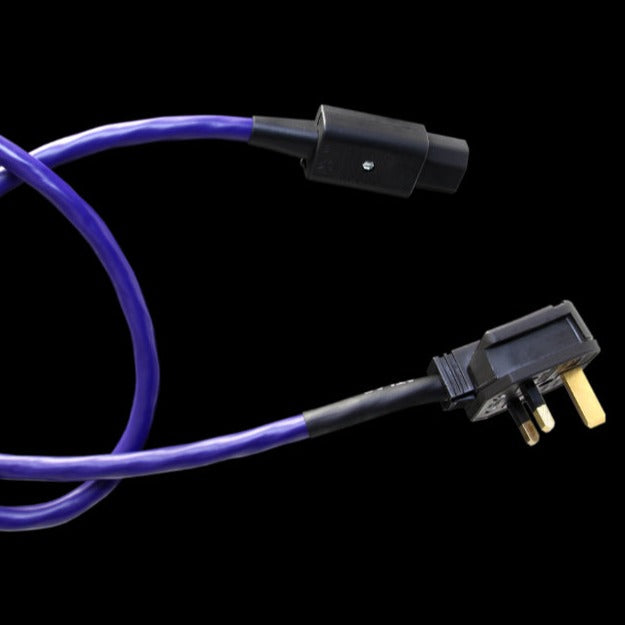

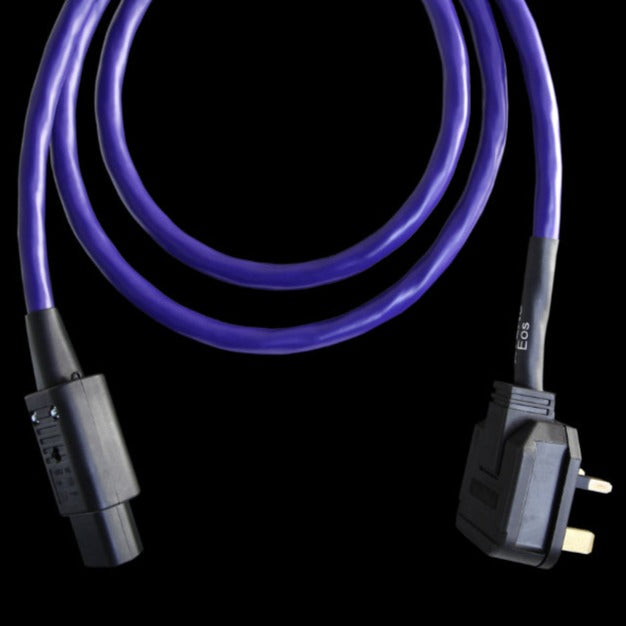

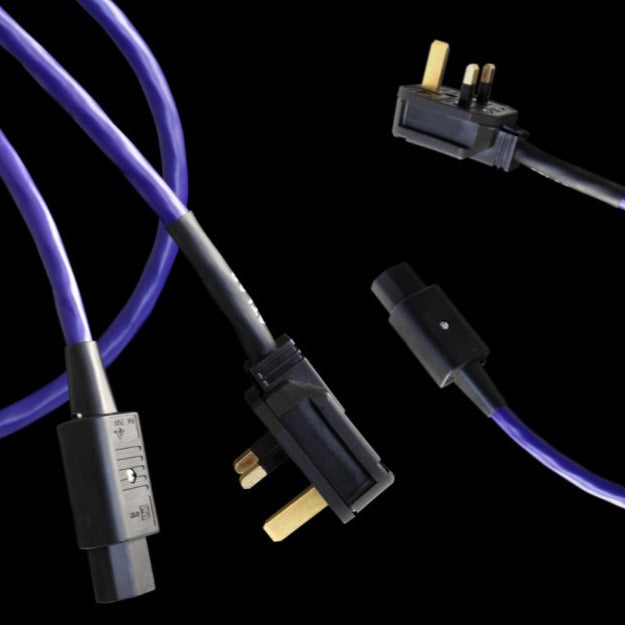

Atlas Eos dd 13A C13 Power Cable

£190.00
  • Atlas Eos dd 13A C13 Power Cable

Atlas

Atlas Eos dd 13A C13 Power Cable

£190.00
£190.00
Payment methods

Quality of mains power can have a real impact on the performance of hifi & home cinema systems. A quality power supply to your components requires cables designed to be resistant to both external RF interference and generated noise on the mains itself.

The Eos dd Power Cable uses OFC conductors in a sophisticated fully screened configuration, implementing our ‘dd’ (dual drain) screening in an entry-level power cable for the first time.

Electical, radio frequency and electromagnetic noise pollution floods our homes and daily life. Our replay equipment has come under assault by extraneous high energy broad spectrum noise, both airborne and directly induced through the mains supply circuits. Wi-fi networks, BlueTooth devices, mobile & domestic cordless phones, ‘wallwart’ power adapters, low voltage light bulbs & dimmer switches are among the worst noise-generating culprits.

Eos power cables are designed specifically to allow your equipment to perform properly. Built around high purity low resistance OFC (Oxygen Free Copper), with low series resistance, high-efficiency dielectrics and extensive screening, Eos power cables effectively filter out harmful incoming radio frequency and power contamination, dumping these rapidly to earth.

The Eos dd utilises our high purity, low resistance, oxygen free copper (OFC) conductors,contained in a highly-stabilised PVC dielectric. The dd (dual drain) conductors and the power conductors, are then enclosed by anti-vibration layer and an innovative hybrid carbon-loaded polymer screen. The assembly is then wrapped in a royal blue PVC sleeve.

The ‘dd’ configuration is a simplified version of the techniques we developed for our top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires connect the screen to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the screen. The benefits are a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

For a more detailed technical analysis of our power products, please refer to this white paper from our Technical Library.

The Eos Power Management System has been designed to let you hear what your system’s really capable of. Eos cables and distribution blocks are available in UK 13A, Schuko & Nema variants.

Your local Atlas dealer/distributor will normally supply Eos products with the appropriate plugs for your country. At the equipment end of the power cable, options are 10A (standard ‘kettle-type’ connector used on most equipment) & 16A (high current, larger format connector) IEC and C7 (‘figure of 8’ connector).
Please specify which type of connector you require on purchase.

iec connectors

The IEC connector on this cable uses a ‘low profile’ body suitable for use with ‘slimline’ equipment such as Linn Klimax, Devialet, etc.

eos modular mains block

Reviewed & Recommended By:

HiFi Choice

Features



Connector Type- Eos Mains Plug



Precision-machined mains connectors with gold-plated pins for low contact resistance. Available in UK (13A), Schuko & Nema versions depending on country of original supply.


Conductor Material - OFC

OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.

Dielectric Material - Stabilised PVC

High-efficiency stabilised PVC.

Construction - Triple Multi-Core

A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen and stabilised PVC outer wrap.

Specifications

Construction Multicore, dual drain
Material OFC
Dielectric Stabilised PVC
Screen Carbon-loaded hybrid screen
Capacitance 95.08Pf/m
Inductance 0.43 µH/m
Resistance 0.0859 Ohm/m
Outside Diameter 9.5mm
Current Capacity 20A
Warranty 5 Years
