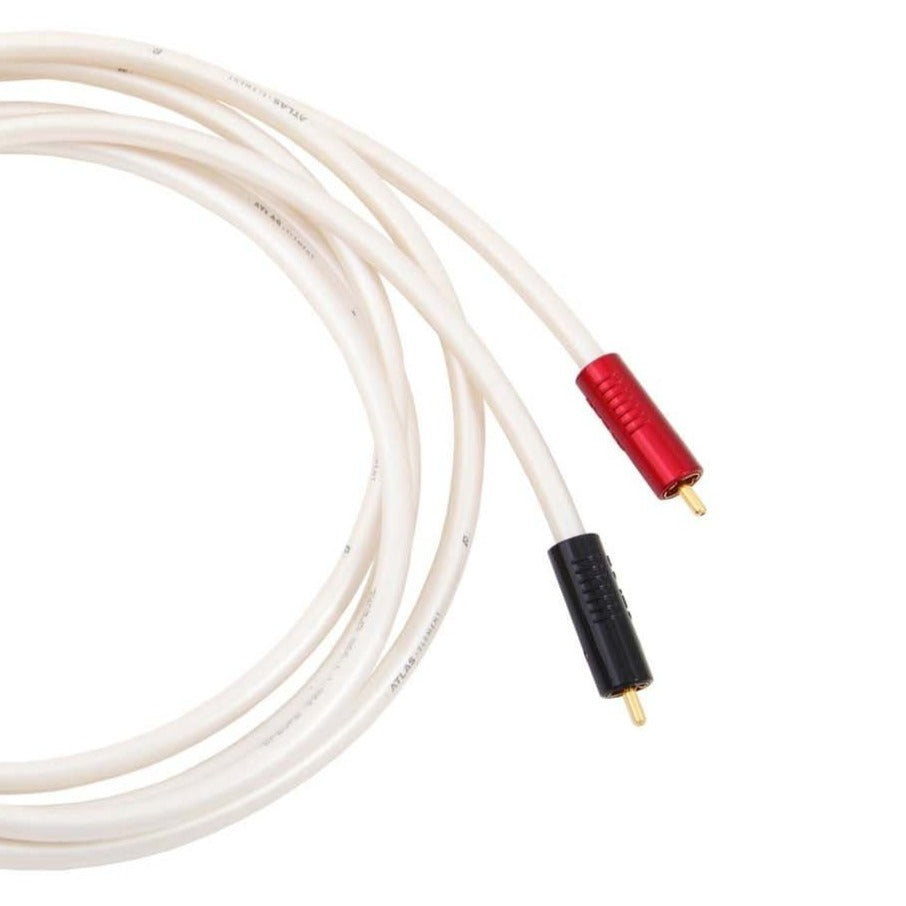

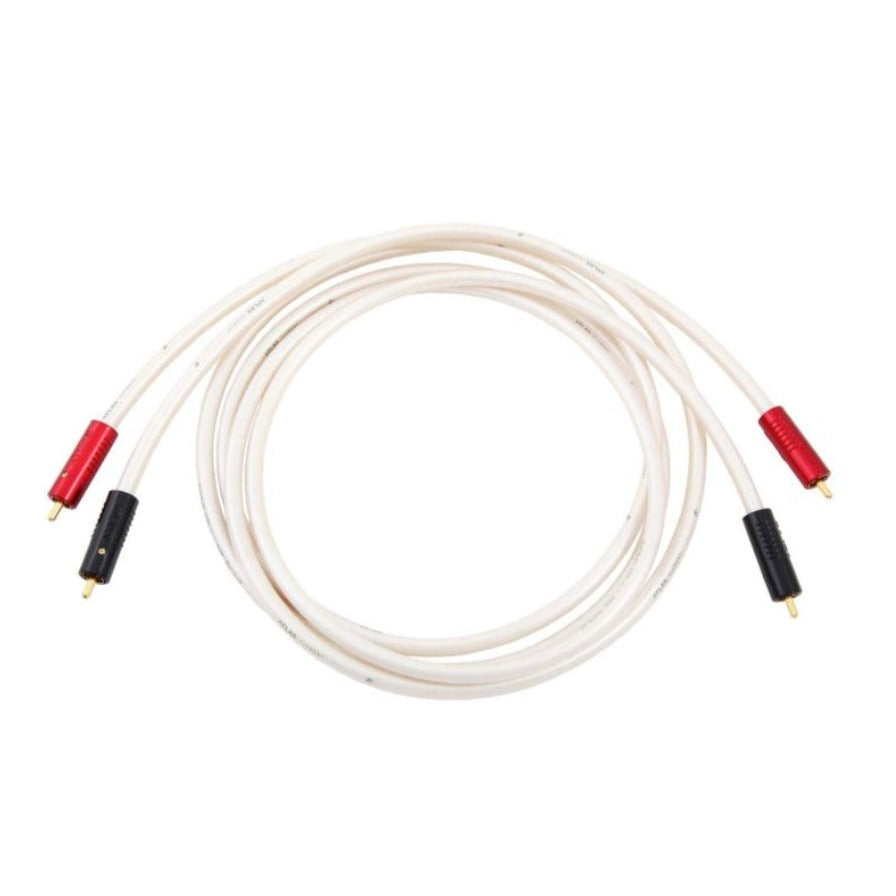

Atlas Element Achromatic RCA Analogue Interconnect Cables

    Description

    Atlas' original design brief for the Element Achromatic RCA was to create a better than average, high quality, entry level interconnect. It seems we succeeded. This latest Element cable has an improved specification – essentially, matching the Element Superior from our previous range, which won numerous awards internationally and proved one of our most successful products.

    A stereo interconnect with a neutral, relaxing sound, proven to be an excellent foundation for further system improvements.

    Benefitting from their ongoing research and development, the Element is fitted with our Achromatic non-magnetic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path. The signal conductor is a fully shielded high quality OCC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable.

    The result is a cable which offers a large three dimensional soundstage and fine levels of detail without the artificial brightness which affects many budget cables. The Element Achromatic offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.

    The Element range includes other analogue termination options, complementary USB & digital interconnects and speaker cables.

    Reviewed & Recommended By:

    HiFi Plus The Ear Best Buy HiFi World 5 Stars HiFi Choice Recommended

    Features

    Achromatic RCA

    Connector Type - Achromatic RCA Plug

    The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

    Achromatic RCA component parts

    Conductor Material - OCC Copper

    OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



    Dielectric Material - PEF

    PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.




    Construction - Co-ax

    Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.  Explore More



    Specifications

    Construction 4 core plus screen
    Material OCC
    Dielectric PEF
    Screen Braid OFC, 85%
    Capacitance 83.34 pF/m
    Inductance 0.512 µH/m
    Resistance 0. 0810 Ohms/m
    Outside Diameter 7.0mm
    Warranty 5 Years

    Atlas Element Achromatic RCA Analogue Interconnect Cables

      Product form

      £97.50 Incl. VAT

      1 in stock Delivered less than 36 hours

      • Dispatch today? Order within: Nov 30, 2023 14:00:00 +0000

        Description

        Atlas' original design brief for the Element Achromatic RCA was to create a better than average, high quality, entry level interconnect. It seems we succeeded. This latest Element cable has an improved specification – essentially, matching the Element Superior from our previous range, which won numerous awards internationally and proved one of our most successful products.

        A stereo interconnect with a neutral, relaxing sound, proven to be an excellent foundation for further system improvements.

        Benefitting from their ongoing research and development, the Element is fitted with our Achromatic non-magnetic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path. The signal conductor is a fully shielded high quality OCC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable.

        The result is a cable which offers a large three dimensional soundstage and fine levels of detail without the artificial brightness which affects many budget cables. The Element Achromatic offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.

        The Element range includes other analogue termination options, complementary USB & digital interconnects and speaker cables.

        Reviewed & Recommended By:

        HiFi Plus The Ear Best Buy HiFi World 5 Stars HiFi Choice Recommended

        Features

        Achromatic RCA

        Connector Type - Achromatic RCA Plug

        The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

        Achromatic RCA component parts

        Conductor Material - OCC Copper

        OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



        Dielectric Material - PEF

        PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.




        Construction - Co-ax

        Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.  Explore More



        Specifications

        Construction 4 core plus screen
        Material OCC
        Dielectric PEF
        Screen Braid OFC, 85%
        Capacitance 83.34 pF/m
        Inductance 0.512 µH/m
        Resistance 0. 0810 Ohms/m
        Outside Diameter 7.0mm
        Warranty 5 Years
