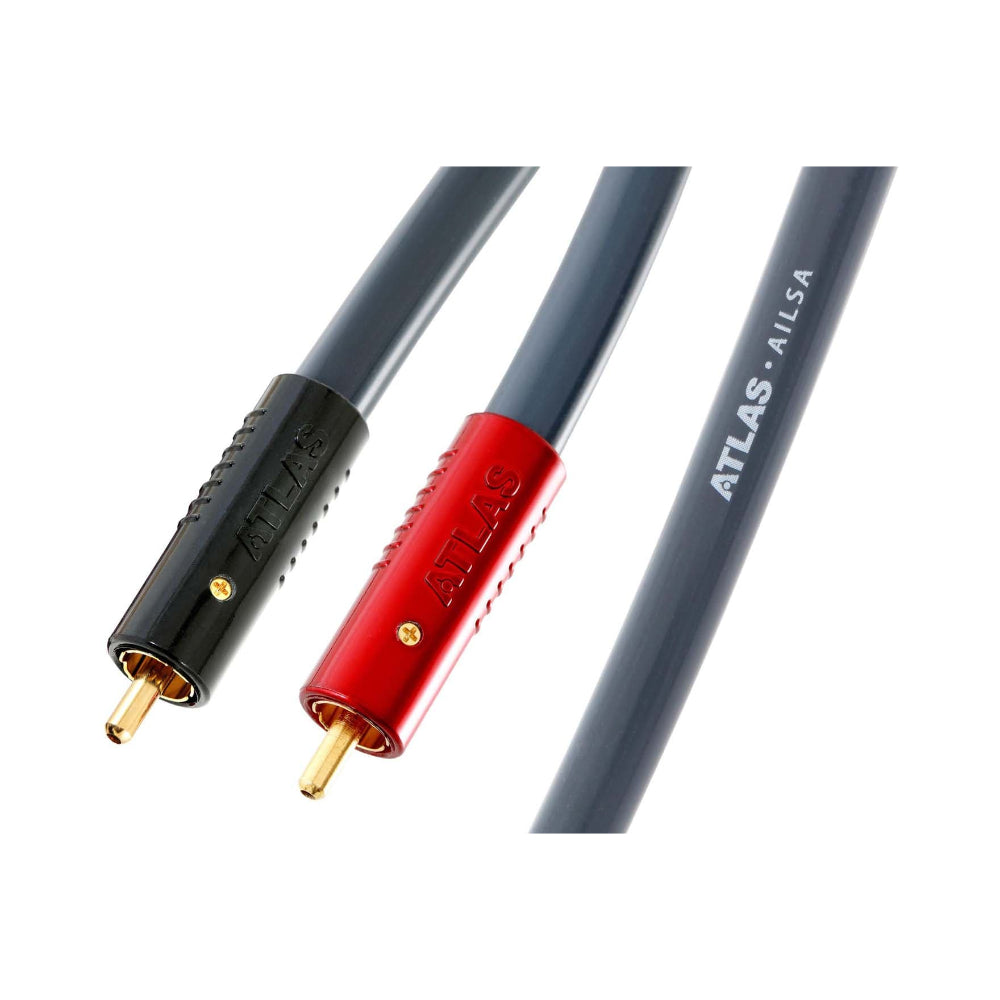

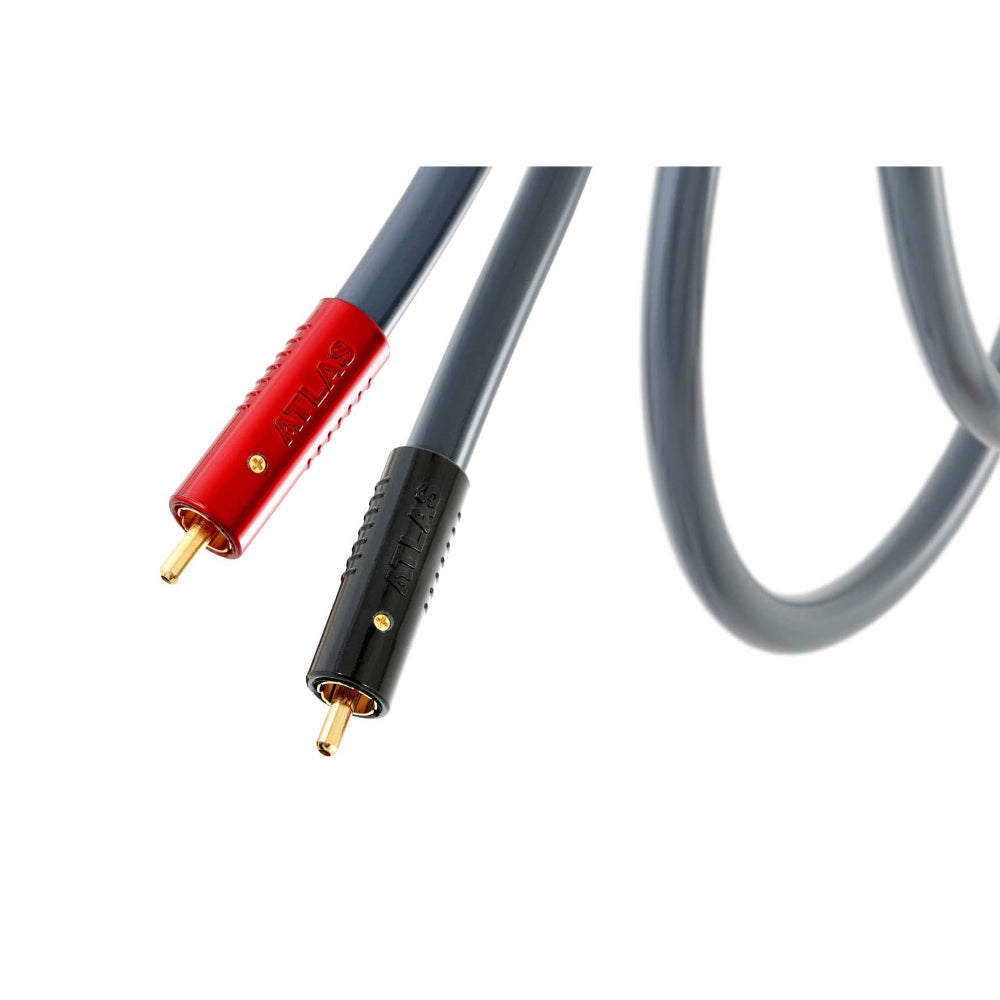

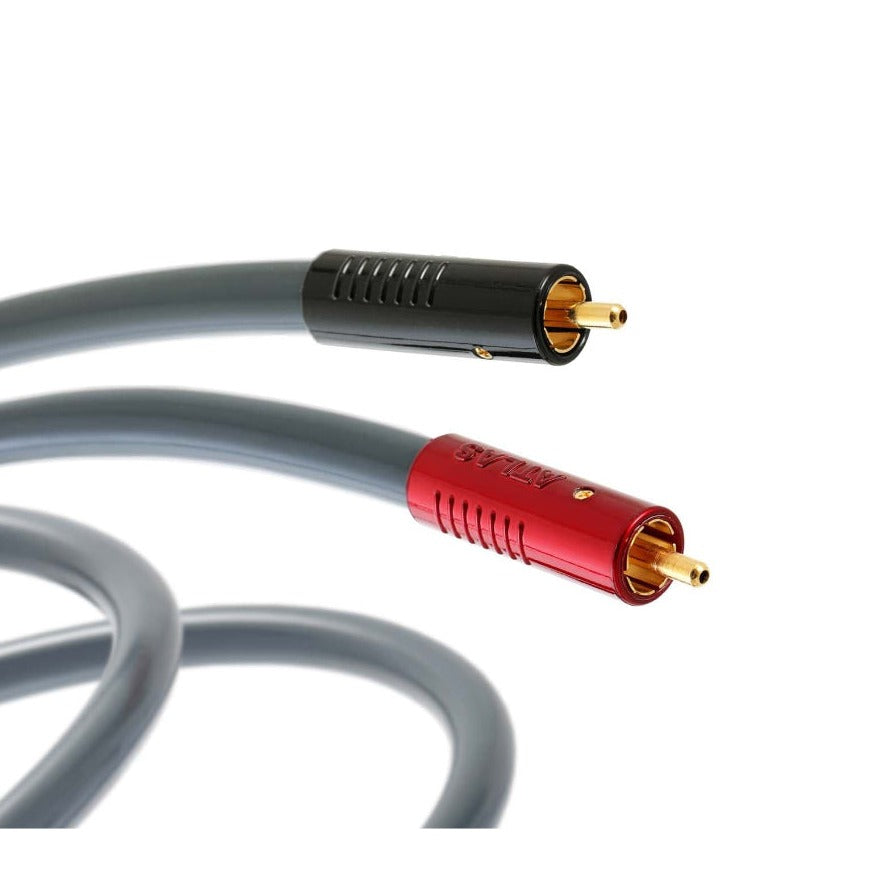

Atlas Ailsa Achromatic RCA Analogue Interconnect Cables

    Description

    High resolution RCA interconnect cable using much of the design thinking developed for our highly acclaimed Mavros & Asimi ranges.

    The Ailsa Achromatic RCA, the first release in a new Atlas product family, is a wide-bandwidth interconnect designed to maximise the performance of high-performance audio systems.

    The result of a new ‘ground-up’ approach to co-axial design, we consider it successfully addresses the shortcomings of typical co-ax cables which many audiophiles consider precludes the use of such a topology in ‘high-end’ systems.

    The Ailsa combines unusually high-quality materials – ultra high-purity OCC conductor, Copper Mylar foil shield and microporous PTFE dielectric –with our next-generation high precision Achromatic RCA connector.

    The result is a beautifully balanced open, accurate, natural sound which we think defines a new performance standard at its price point, and represents an ideal upgrade path for owners of Element or Equator cables.

    Reviewed & Recommended By:

    The Ear Best Buy HiFi Choice  HiFi World 5 Stars

    Features

    Achromatic RCA

    Connector Type - Achromatic RCA Plug

    The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

    Achromatic RCA component parts

    Conductor Material - OCC Copper

    OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



    Dielectric Material - PTFE

    In theory, the perfect cable is an un-insulated conductor floating in free air. In practice, there’s a bit more to it than that.

    Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.




    Construction - Co-ax dd

    Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path. Combined with our dd (dual drain) system which avoids distortion of the screening braid during assembly, which can change the RF impedance of the cable and therefore its performance.

    Specifications

    Construction Co-axial dd
    Material OCC
    Dielectric Microporous PTFE
    Screen Braid + Mylar™, 100%
    Capacitance 54.50 pF/m
    Inductance 0.462 µH/m
    Resistance 0.0388 Ohm/m
    Outside Diameter 9mm
    Warranty 5 Years

    Atlas Ailsa Achromatic RCA Analogue Interconnect Cables

      Product form

      £250.00 Incl. VAT

          Description

          High resolution RCA interconnect cable using much of the design thinking developed for our highly acclaimed Mavros & Asimi ranges.

          The Ailsa Achromatic RCA, the first release in a new Atlas product family, is a wide-bandwidth interconnect designed to maximise the performance of high-performance audio systems.

          The result of a new ‘ground-up’ approach to co-axial design, we consider it successfully addresses the shortcomings of typical co-ax cables which many audiophiles consider precludes the use of such a topology in ‘high-end’ systems.

          The Ailsa combines unusually high-quality materials – ultra high-purity OCC conductor, Copper Mylar foil shield and microporous PTFE dielectric –with our next-generation high precision Achromatic RCA connector.

          The result is a beautifully balanced open, accurate, natural sound which we think defines a new performance standard at its price point, and represents an ideal upgrade path for owners of Element or Equator cables.

          Reviewed & Recommended By:

          The Ear Best Buy HiFi Choice  HiFi World 5 Stars

          Features

          Achromatic RCA

          Connector Type - Achromatic RCA Plug

          The Achromatic is a low-mass, non-compression, constant impedance, self-cleaning, solder-free construction RCA plug.  Explore More

          Achromatic RCA component parts

          Conductor Material - OCC Copper

          OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.  Read More



          Dielectric Material - PTFE

          In theory, the perfect cable is an un-insulated conductor floating in free air. In practice, there’s a bit more to it than that.

          Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.




          Construction - Co-ax dd

          Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path. Combined with our dd (dual drain) system which avoids distortion of the screening braid during assembly, which can change the RF impedance of the cable and therefore its performance.

          Specifications

          Construction Co-axial dd
          Material OCC
          Dielectric Microporous PTFE
          Screen Braid + Mylar™, 100%
          Capacitance 54.50 pF/m
          Inductance 0.462 µH/m
          Resistance 0.0388 Ohm/m
          Outside Diameter 9mm
          Warranty 5 Years
