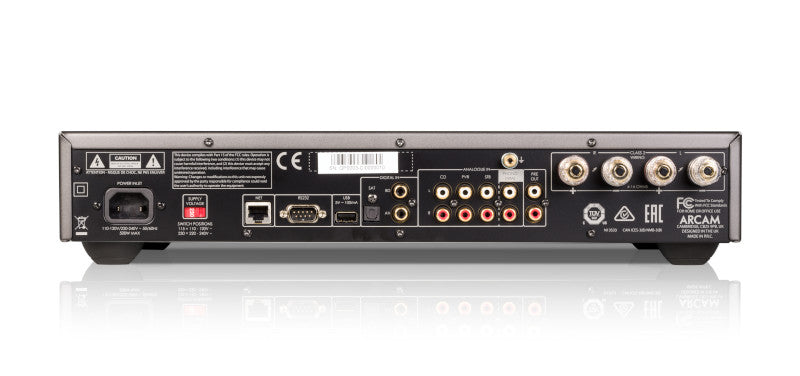

Arcam SA20 Class G Integrated Amplifier

    Description

    There are two frequent problems with hi-fi amplifiers. Class A, the traditional audiophile’s choice, uses a single power supply constantly running at full capacity, even when there’s no signal coming through. Great for reproducing those subtle details at low levels however struggles to provide extreme power when needed.

    Class A/B, the most common amp class, switches between the two internal amplifiers, one for each half of the waveform. Far more efficient but often a recipe for crossover distortion, since those low-level details we crave can get lost within any mis-match between the two switching over.

    Class G is essentially a hybrid amplifier, utilising Class A specifically for low-level signals, but when required switching in an additional power supply to power those larger sections of the waveform.

    Featurs

    • Class G amplification for impeccable sound and efficiency
    • 90W of power per channel
    • 5 analogue inputs including phono
    • 3 digital inputs
    • 32-bit DAC,Sabre ESS9038K2M
    • Full I/P control
    • Total harmonic distortion + noise = 0.003%

    Specification

    Continuous power output (0.5% THD), per channel
    Both channels, 8Ω, 20Hz—20kHz 90W
    Both channels, 4Ω, at 1kHz 150W
    Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
    Analogue Inputs
    Phono (MM) cartridge:
    Input sensitivity at 1kHz 5mV
    Input impedance 47kΩ + 100pF
    Frequency response (ref. RIAA curve) 20Hz – 20kHz ± 1dB
    Signal/Noise ratio (A-wtd) 50W, ref. 5mV input 80dB
    Overload margin, ref. 5mV at 1kHz 21dB
    Line Inputs:
    Nominal sensitivity 1V
    Input impedance 10kΩ
    Maximum input 6Vrms
    Frequency response 20Hz – 20kHz ± 0.2dB
    Signal/Noise ratio (A-wtd) 50W, ref. 1V input 106dB
    Digital Inputs
    DAC ESS9038K2M
    Frequency response 20Hz - 20kHz ± 0.05dB
    Total harmonics distortion + Noise 0.0007%
    Signal/Noise ratio (A-wtd) 115dB
    Supported sample rates

    Optical - 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz

    Coaxial - 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Bit depth  16-bit – 24-bit
    Pre-amplifier output
    Nominal output level 630mV
    Output impedance 230Ω
    Headphone output
    Maximum output level into 600Ω 5Vrms
    Output impedance 1Ω
    Load range 16Ω – 2kΩ
    General
    Mains voltage 110–120V or 220–240V, 50–60Hz
    Maximum power consumption 500W
    Dimensions W x H x D (including feet, control knob and speaker terminals) 433x87x323mm
    Weight (net) 9.2kg
    Weight (gross) 11.1kg
    Supplied accessories

    Mains leads

    Remote control

    2 x AAA batteries

    Read more
